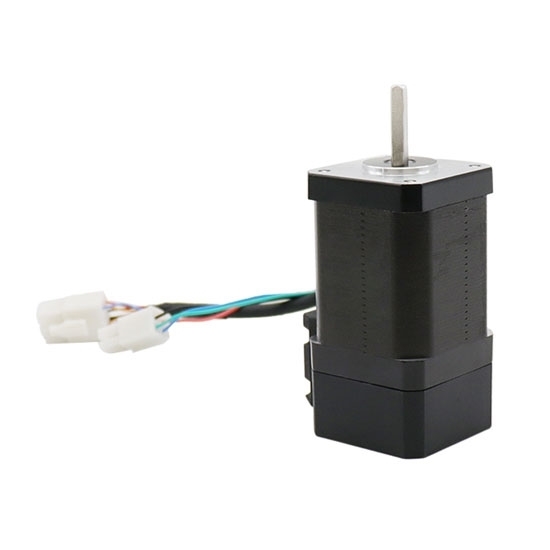

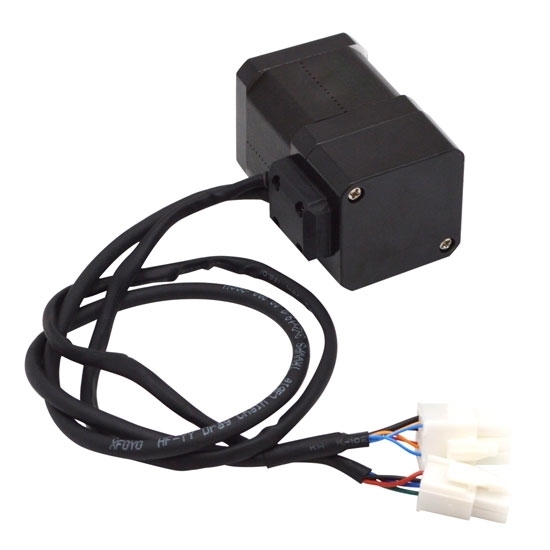

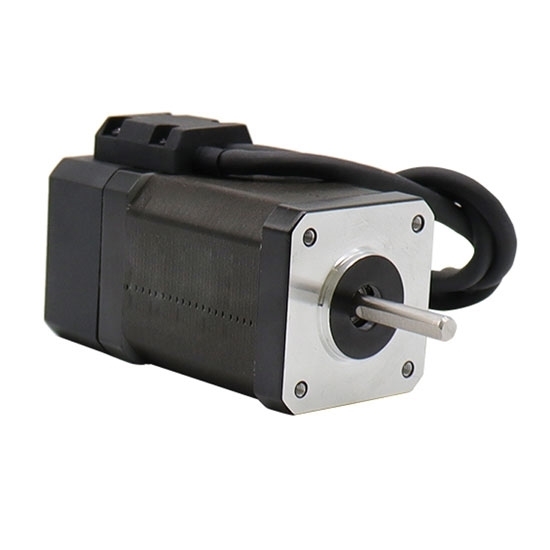

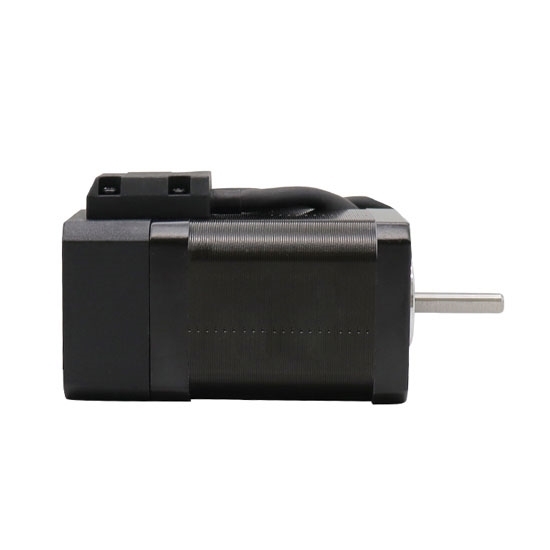

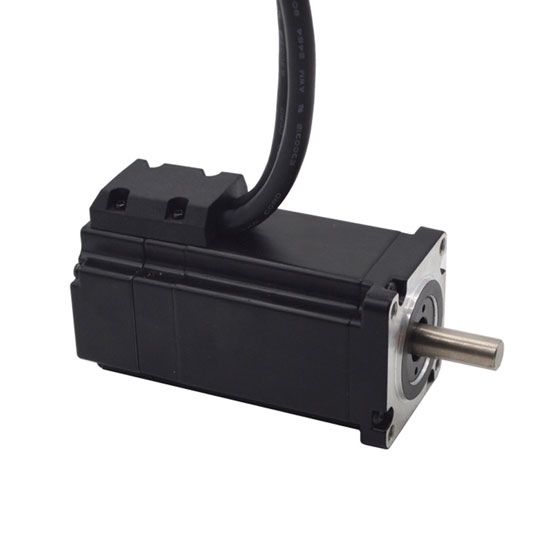

Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.4N·m

0 reviews • Write a review

from

$82.89

Ex Tax: $82.89

Stock: In Stock
Model: RDDLZ-STEP-17CM200
Weight: 1.00
SKU: RDDLZ-STEP-17CM200

Available Options

Input Pulse Voltage

With Matched Driver

Encoder Specification

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Nema 17 closed loop hybrid stepper motor with encoder for sale, precise positioning, fast response and high torque, is widely used for robot arm, sewing machine, CNC router, 3D printer, welding machine, textile equipment and laser cutter, etc.

Physical Specification

Model Number: RDDLZ-FY42EM200BC1
Matched the Driver Model: RDDLZ-FYDB504T
Flanged Size: 42 x 42mm (Nema 17)
Motor Length: 60mm
Shaft Diameter: 5mm
Number of Leads: 4 wire
Weight: 0.24kg

Electrical Specification

Motor Type: Bipolar Closed Loop Stepper
Step Angle: 1.8°
Rated Current: 2A
Holding Torque: 0.4N·m (40 N·cm, 57 Oz.in)
Phase Resistance: 0.8Ω
Phase Inductance: 1.9mH
Rotor Inertia: 57g·cm²
Encoder: A, B two-channel signal, 1000ppr (default)/2500ppr, 5V DC power supply

Dimensions (Unit: mm)

L=60mm

Wiring Diagram

Speed-Torque Curve Diagram

Details

Tips: Hybrid stepper motor basic

As an executive element, the best hybrid stepper motor is one of the key products of mechatronics and is widely used in various automation control systems.
Stepper motor is an electric motor that converts electrical pulses into angular displacement. In other words, when the stepper driver receives a pulse signal, it drives the stepper motor to rotate a fixed angle (that is step angle) in the set direction. The angular displacement can be controlled by controlling the number of pulses, so as to achieve the purpose of accurate positioning. At the same time, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation.
