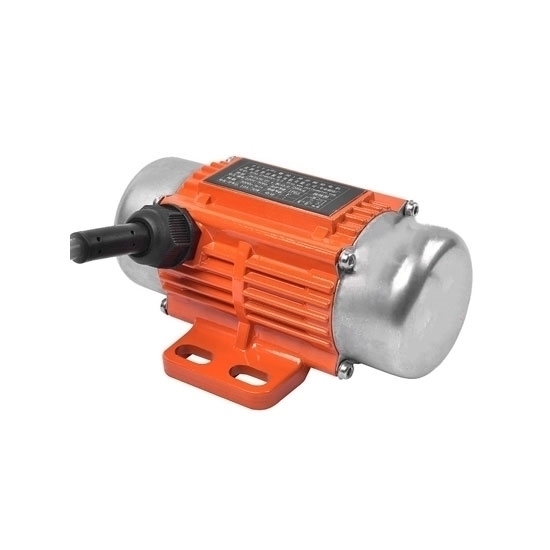

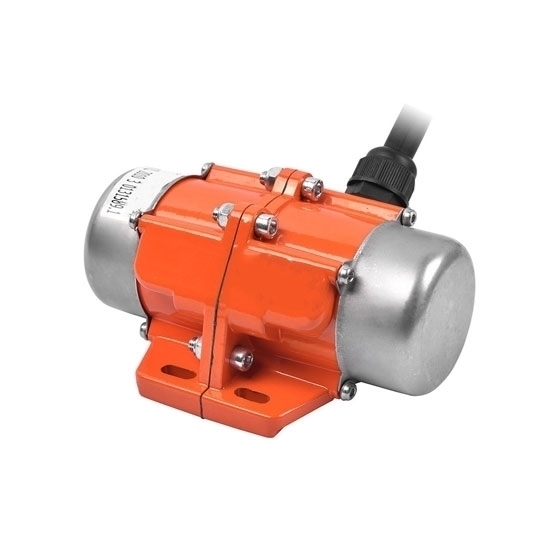

90W Single Phase AC Vibration Electric Motor, 220V/110V

0 reviews • Write a review

from

$149.62

Ex Tax: $149.62

Stock: In Stock
Model: RDDLZ-AVB-TB902S2
Weight: 1.00
SKU: RDDLZ-AVB-TB902S2

Available Options

AC Voltage

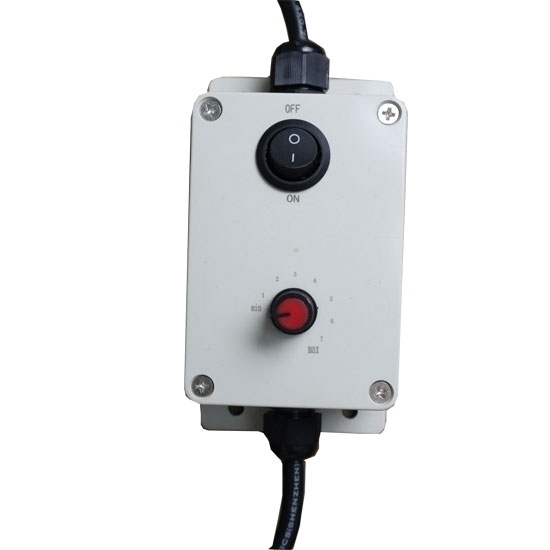

With Speed Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a single phase vibration motor for the feeder machine and topsoil screener. 220V/110V AC miniature vibration electric motor, 90W power, 50Hz 3000rpm & 60Hz 3600rpm frequency, 2 pole, CE certification and IP65 waterproof. The speed controller is optional.

Features

Small AC vibration electric motor is made of thickened aluminum alloy, featuring a compact size, low noise, and adjustable amplitude.
The special voltage can be customized, and the power cord will be given as a gift under 100W. IP65 waterproof rating and resistance to low-pressure jets.
1 phase industrial vibrating motor has high strength, anti-deformation, and anti-oxidation properties, allowing long-term high-speed operation with a firm, shockproof thickened base.

Specifications

Model	RDDLZ-AVB-TB902S2
Power	90W
Voltage	AC 220V/AC 110V
Current	0.263A/0.628A
Frequency	50 Hz	60Hz
Rated Speed	3000rpm	3600rpm
Force	92 kg
Phase	Single Phase
Pole	2 Pole
Material	Aluminum Alloy
Protection Rank	IP 65
Weight	2.5 kg
Optional Accessories	Speed Controller
Frame No	2
Certificate	CE

Dimension (Unit: mm)

Frame No	A	B	C	D	E	F	G	H	I	J	K	L	M	N
2	175.5	110	79.5	10	26.5	36.5	63	38.5	66	91.5	8.5	25.5	66	M-16

Internal Structure

Applications

RDDLZ 90W 220V/110V AC micro single phase vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: AC Vibration Electric Motor Troubleshooting Issues and Solutions

Issue	Possible Cause	Solution
AC vibration Motor does not start	Faulty capacitor, incorrect wiring, low voltage	Check/replace capacitor, verify wiring, stabilize voltage
Weak vibrations	Incorrect weight settings, worn bearings	Adjust weights, replace bearings
Overheating	Overload, poor ventilation, wrong voltage	Reduce load, improve cooling, check voltage
Excessive noise	Loose bolts, unbalanced weights, damaged bearings	Tighten bolts, balance weights, replace bearings
Frequent shut-offs	Overheating, electrical faults	Improve ventilation, check connections, and ensure proper wiring
