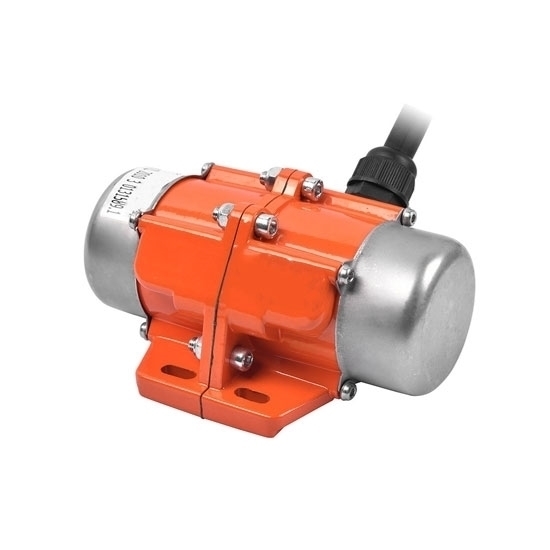

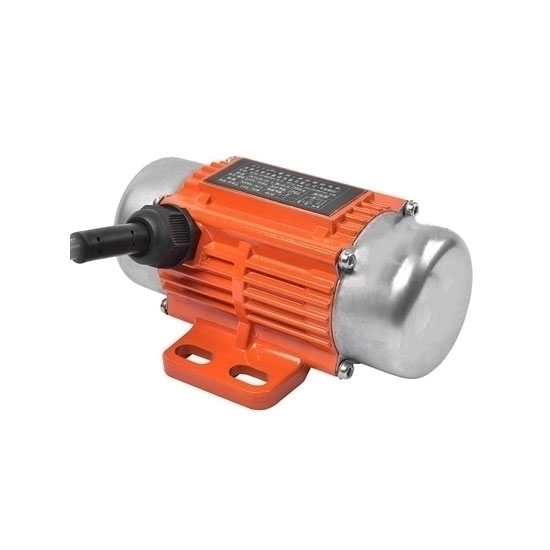

100W Single Phase AC Vibration Electric Motor, 220V/110V

0 reviews • Write a review

from

$154.78

Ex Tax: $154.78

Stock: In Stock
Model: RDDLZ-AVB-TB1002S2
Weight: 1.00
SKU: RDDLZ-AVB-TB1002S2

Available Options

AC Voltage

With Speed Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100W 1 phase 220V/110V AC vibration electric motor for sale online. 50/60Hz frequency, 3000/3600rpm rated speed, 2 pole and aluminum alloy material. It is an industrial vibrating motor equipped with a matching speed controller to adjust the rotation speed.

Features

Small AC vibration electric motor is made of thickened aluminum alloy, featuring a compact size, low noise, and adjustable amplitude.
The special voltage can be customized, and the power cord will be given as a gift under 100W. IP65 waterproof rating and resistance to low-pressure jets.
1 phase industrial vibrating motor has high strength, anti-deformation, and anti-oxidation properties, allowing long-term high-speed operation with a firm, shockproof thickened base.

Specifications

Model	RDDLZ-AVB-TB1002S2
Power	100W
Voltage	AC 220V/AC 110V
Current	0.315A/0.821A
Frequency	50 Hz	60Hz
Rated Speed	3000rpm	3600rpm
Force	105 kg (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Phase	Single Phase
Pole	2 Pole
Material	Aluminum Alloy
Protection Rank	IP 65
Weight	2.5 kg

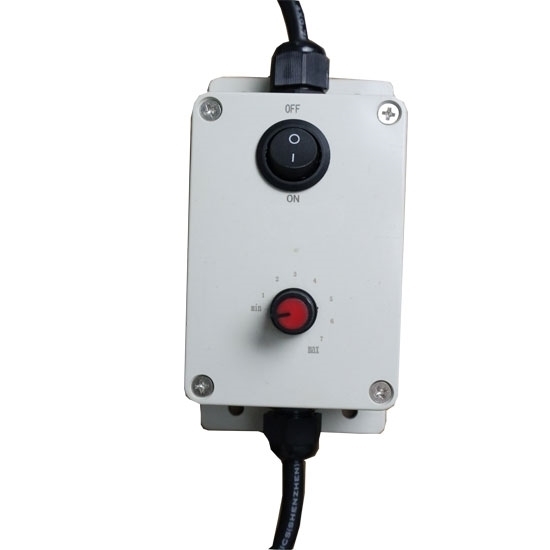

Optional Accessories	Speed Controller
Frame No	2
Certificate	CE

Dimension (Unit: mm)

Frame No	A	B	C	D	E	F	G	H	I	J	K	L	M	N
2	175.5	110	79.5	10	26.5	36.5	63	38.5	66	91.5	8.5	25.5	66	M-16

Internal Structure

Applications

RDDLZ 100W 220V/110V AC micro single phase vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: How to size a vibrating motor?

Sizing a vibrating motor involves selecting the right motor power, vibration force, and operational parameters to meet the needs of a specific application.

Key factors include the required vibration force (based on material type and size of the area), motor power (based on force and efficiency), and frequency and amplitude (which determine how the material moves).

Additionally, environmental conditions, motor mounting, and the available power supply must be considered to ensure optimal performance and reliability. Proper sizing ensures the vibrating electric motor operates efficiently and minimizes wear, enhancing its lifespan in industrial applications.
