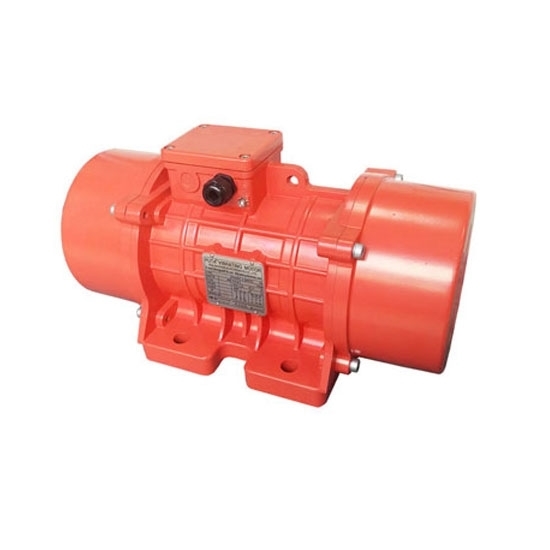

150W three phase AC vibration motor for sale online. High-efficiency small vibration electric motor with AC 220V/380V, 50Hz frequency, 1450 rpm rated speed, 4 pole, 388kg force, CE certification, and IP65 waterproof, suitable for food, powder sieving, cutting, metallurgy, coal and other fields.

Specifications

Dimension (Unit: mm)

Internal Structure

Applications

RDDLZ 150W 220V/380V AC 3 phase micro vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: RDDLZ Rhree-phase Vibration Motor Structure

• Customized silicon steel sheet design, silicon steel sheet with high performance and low iron loss to meet its ultra-small volume, extremely low heat generation, and ultra-high efficiency.
• The stator adopts the industry's proven vacuum pressure dipping system, which has strong insulation and anti-corona capabilities. The air gap is perfectly filled, with no bubbles, excellent insulation performance, long insulation life, and high mechanical and electrical strength of the winding.
• The machining of the rotor adopts an advanced aluminum casting process and a high-precision CNC machining process. The rotor main shaft adopts 40Cr round steel quenched and tempered heat treatment, the strength is twice as high as that of the ordinary motor main shaft. The rotor silicon steel sheet adopts high-speed punching progressive die, with small punching burrs, good flatness and high smoothness.
• The shell material of the RDDLZ AC vibration motor includes high-strength aluminum alloy, corrosion-resistant stainless steel and ductile iron, etc., and they are all high-density die-casting. All series products adopt scientific and reasonable structural design and choose long life bearing ensures the high mechanical reliability and operational stability of the motor.
