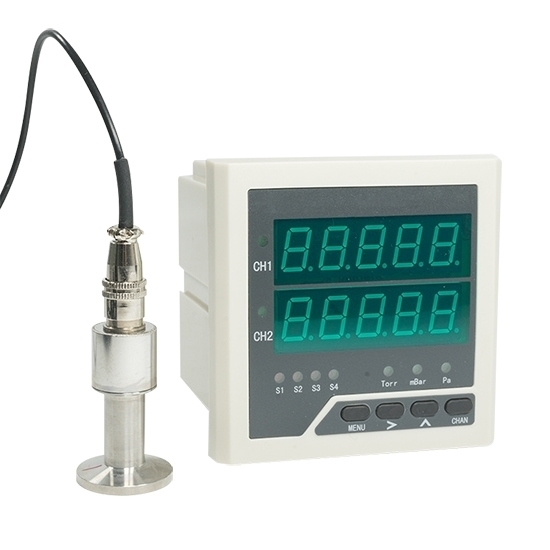

Digital Pirani Gauge With Dual LCD Display, Pa/mBar/Torr, Analog Output

0 reviews • Write a review

from

$700.76

Ex Tax: $700.76

Stock: In Stock
Model: RDDLZ-CX-PRN160
Weight: 1.00
SKU: RDDLZ-CX-PRN160

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

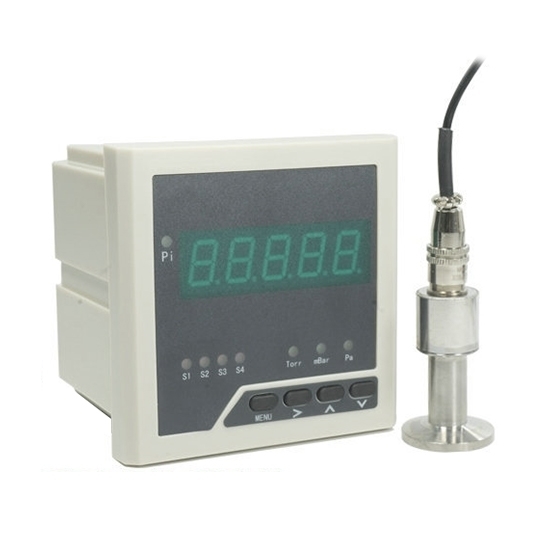

Digital Pirani vacuum gauge offers versatile vacuum measurement, available in two-way (D-type) or single-way (S-type) configurations with precise Pirani regulation. LCD can display Pa/mBar/Torr units. Single or dual-display Pirani vacuum gauge features analog output 0-10V DC, utilizing four single-pole double-throw relays with user-settable control points for flexible operation.

Specifications

Model	RDDLZ-PRN160S	RDDLZ-PRN160D
Display	Single Row of 5 Green LEDs	Dual Rows of 5 Green LEDs
Measuring Range	1.0x10^-1 ~ 1.0x10⁵ Pa
Measurement Accuracy	1.0x10⁴ ~ 1.0x10⁵ Pa: +/-50%; 1.0x10^-1 ~ 1.0x10⁴ Pa: +/-20%
Measurement Characteristics	Display Accuracy: +/-10%; Zero Offset: +/-5.0%
Data Acquisition	Reading Resolution: 1.0%; Response Time <100ms; Display Update Rate: 1s
Signal Input	Four Smart Buttons (Unit selection, atmospheric pressure and high vacuum calibration, degassing, control point setting, etc.)
Signal Output	Analog Voltage 0-10V DC Output. If you need RS485, switch output, or other outputs, please contact us.
Control Unit	4-way SNDT Relay; Load: 3A/220V AC, Non-inductive Load; Response Time <1s, Set Point Power-off Memory
Temperature	0~45℃ (Working Temperature ); -40~75℃(Storage Temperature)
Certificate	CE
Power Supply	84V AC~265V AC/0.5A; Total Power Consumption <10W
Weight	0.5Kg (Including 2 Probes + 3m Cable)
Size	Panel 96x96x15mm; Chassis: 89x89x75mm
Installation Method	Embedded Panel Opening: 90x90mm

Dimension (Unit: mm)

Applications

Tips: Does the vacuum gauge need to be calibrated?

Yes, vacuum gauges need to be calibrated to ensure accurate and reliable measurements. Calibration helps adjust for any drift or degradation in the sensor over time, ensuring the gauge provides consistent and accurate readings. Regular calibration is important for maintaining performance and meeting industry standards.
