Digital Vacuum Pressure Gauge, Pa/mBar/mmHg/Micron

0 reviews • Write a review

from

$203.84

Ex Tax: $203.84

Stock: In Stock
Model: RDDLZ-ST-VG90
Weight: 1.00
SKU: RDDLZ-ST-VG90

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

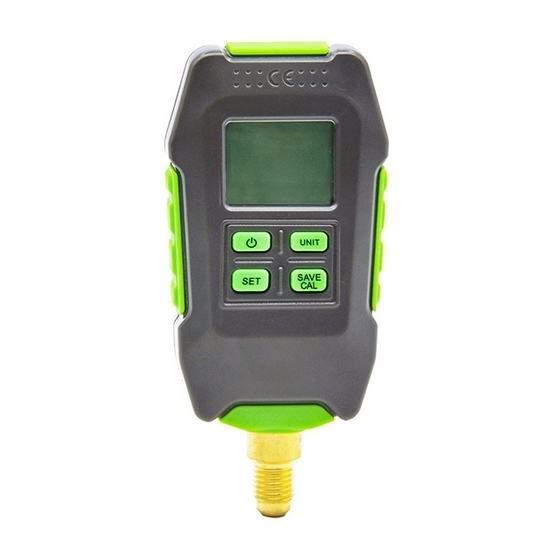

This digital vacuum manometer comes with a Pirani sensor, clear LCD display, and alarm function and supports measuring vacuum pressure in the range of 0~10kPa, 0~100.00mBar, 0~75.000mmHg and 0~75000Micron.

Specifications

Model: RDDLZ-ST-VG90
Maximum Overload Pressure: 72Psi/0.5Mpa
Range: 0~10000Pa/0~100.00mBar/0-75.000mmHg/0~75000Micron
Resolution: 0.01 (<10Pa), 0.0001 (10mBar), 0.0001 (<10mmHg),1 (<30000 Micron)
Measurement Accuracy: 2~100Pa: Reading ±5% (at 20℃)
Operating Temperature: 0~50℃ (32~122℉)
Battery Life: 45 hours (3 AA Batteries)
Unit: Pa, mBar, mmHg, Micron
Refresh Rate: 0.5 seconds
Interface: 1x7/16"-20UNF
Sensor: 1xPirani sensor
Auto Shut-Off Time: 10 minutes
Backlight Time: 20 seconds
Buzzer: 90dB volume sounds for 10s and then turns off.
Weight: About 125g (Without Batteries)
Application Range: Atmospheric environment (Cannot be used for measurements in other environments such as refrigerants)

Details

Details

Tips: What is vacuum pressure gauge?

A vacuum pressure gauge measures pressures below atmospheric levels, commonly referred to as a vacuum. It is used in various applications such as industrial processes, scientific research, and semiconductor manufacturing, where precise control of vacuum conditions is essential. The gauge provides readings in either analog or digital form, showing how much the pressure inside a system is reduced compared to atmospheric pressure. Different types of vacuum gauges are available to cover various pressure ranges and accuracies, making them suitable for a wide range of vacuum environments.
