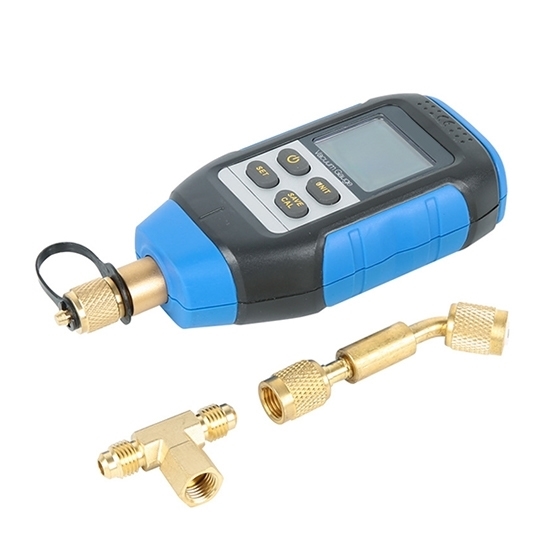

RDDLZ digital vacuum gauge supports vacuum pressure measurement within a wide range of 0~10kPa, 0~100.00mBar, 0~75.000mmHg, and 0~75000Micron. Portable vacuum meter offers a Pirani sensor, 720P LCD display, and alarm function, suitable for measuring in refrigerator air conditioners, cold storage, automobiles, chemical industry, and pipelines.

Specifications

• Model: RDDLZ-VMV-1
• Maximum Overload Pressure: 72Psi/0.5Mpa
• Range: 0~10000Pa/0~100.00mBar/0~75.000mmHg/0~75000Micron
• Resolution: 0.01 (<10Pa), 0.0001 (10mBar), 0.0001 (<10mmHg),1 (<30000 Micron)
• Measurement Accuracy: 2~100Pa: Reading ±5% (at 20℃)
• Operating Temperature: 0~50℃ (32~122℉)

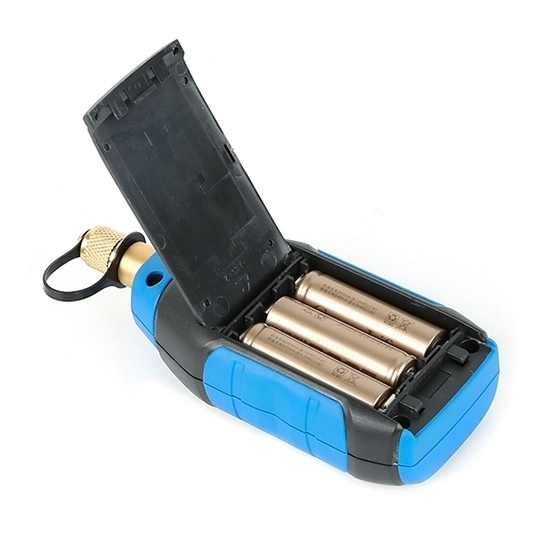

• Battery Life: 45 hours (3 AA Batteries)
• Unit: Pa, mBar, mmHg, Micron
• Refresh Rate: 0.5 seconds
• Interface: 1x7/16"-20UNF
• Sensor: 1xPirani sensor
• Auto Shut-Off Time: 10 minutes
• Backlight Time: 20 seconds
• Buzzer: 90dB volume sounds for 10s and then turns off.
• Weight: About 125g (Without Batteries)
• Application Range: Atmospheric environment (cannot be used for measurements in other environments such as refrigerants)

Details

Tips: Units of Vacuum Pressure Meter

• Pascal (Pa): The SI unit of pressure, with 1 Pa = 1 N/m². Often used in high and ultra-high vacuum systems.
• Torr: Equal to 1/760 of an atmosphere, or about 133.32 Pa. Commonly used in vacuum technology.
• Millimeters of mercury (mmHg): Similar to Torr, with 1 mmHg = 133.322 Pa. Used in medical and laboratory applications.
• Bar: Industrial unit where 1 bar = 100,000 Pa. Millibars (mBar) are common in vacuum systems.
• Inches of mercury (inHg): Used in U.S. vacuum systems, with 1 inHg = 3,386 Pa.
• Micron (µm): Equal to 0.001 mmHg or 0.133322 Pa, often used for measuring high vacuum.
