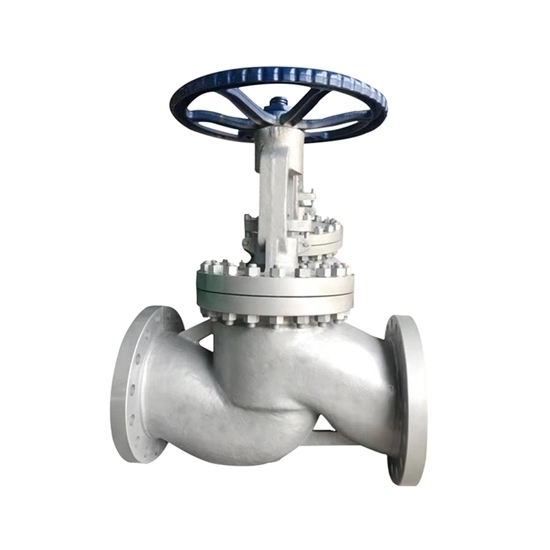

1-1/4" Flanged Globe Valve

0 reviews • Write a review

from

$401.75

Ex Tax: $401.75

Stock: In Stock
Model: RDDLZ-GV-32FGV
Weight: 1.00
SKU: RDDLZ-GV-32FGV

Available Options

Short Description

Pressure

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Thickened body makes the globe valve stable. Mechanical seal and antirust globe valve can be used in petroleum, chemical and power system.

Features:

Streanline, outside screw and yoke.
Loose disc, rising stem and handwheel.
Yoke integral with bonnet, available with gear operator.

Specification:

Model: RDDLZ-J41H-16/25C-DN32
Port Size: 1-1/4 inch (DN32)
Material: carbon steel
Structural Style: straight through form
Connection Type: flange connection
Medium: water, oil, steam
Pressure: 1.6Mpa/2.5Mpa
Direction of Flow: one way flow
Drive Mode: manual
Working Temperature: -29 ℃ ~ 425 ℃
Net Weight: 16kg

Dimension (Unit: mm)

DN (mm)	L	D	D₁	D2	b	Z-φd	H	Do
DN32	180	135	100	78	18	4-φ18	280	180

Tips: What is Flanged Connection?

Flange connection is the two pipes, pipe fittings or equipment, respectively fixed on a flange plate, and then add flange pad between the two flanges, and finally use a bolt to pull the two flanges tightly together. A connection can be made between a stationary pipe and a rotating or reciprocating device.
