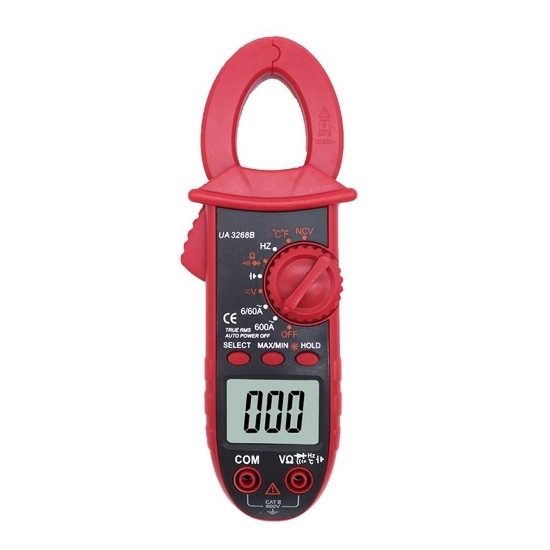

Mini Clamp Meter, AC Current 600A, NCV/TRMS/Capacitance/Temperature Function

0 reviews • Write a review

from

$80.89

Ex Tax: $80.89

Stock: In Stock
Model: RDDLZ-CLAM-3268B
Weight: 1.00
SKU: RDDLZ-CLAM-3268B

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Tips: Clamp meter NCV function, the Non-Contact voltage measurement
Set the function range switch to the NCV position. At this time, the digital clamp meter displays 'NCV' and '----'symbols, and the top of the clamp meter is close to the object to be detected such as the mains phase line, the power switch and the outlet. When the voltage is detected to be greater than 110V (AC RMS), the meter lights up the corresponding signal strength indicator (high, medium and low) according to the detected signal strength, and the buzzer will give out alarm at different frequencies.
Note:

Even if there is no indication, the voltage may still exist. Do not rely on non-contact voltage detectors to determine if there is voltage on the shield. Detection operations may be affected by socket design, insulation thickness and type of different factors.
When the input voltage of the instrument input terminal, due to the existence of induced voltage, the voltage sensing indicator may also be bright.
Sources of external environment interference (such as flash, motor, etc.) may falsely trigger non-contact voltage detection.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Basics	Model	RDDLZ-UA3268B
	Weight	160g
	Size (LWH)	1855125mm
	Display	4 digit LCD display
	Maximum display value	1999
	Power supply	DC 3V, 2 AAA batteries
	Maximum jaw opening size	28mm
	Woring environment	Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)
	Accessories	A pair of test probes, a pair of temperature probes, a user manual, 2 AAA batteries
Functions	Item	Range	Accuracy
	AC current	600A	±(1.5%+5 digits)
	DC voltage	600V	±(1.0%+5 digits)
	AC voltage	600V	±(1.2%+5 digits)
	Resistance	20MΩ	±(1.0%+2 digits)
	Frequency	100kHz	±(1.5%+5 digits)
	Capacitance	100mF	±(4.0%+3 digits)
	Temperature	-40℃~+1000℃ (-40℉~1832℉)	±(1.0%+3 digits)
Special functions	TRMS	True RMS measurement for sine wave signal
	NCV	Non-contact voltage test
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Automatic range selection and manual range selection
	Backlight	Backlight for LCD display
	Inspection light	Inspection light for clamp operation
