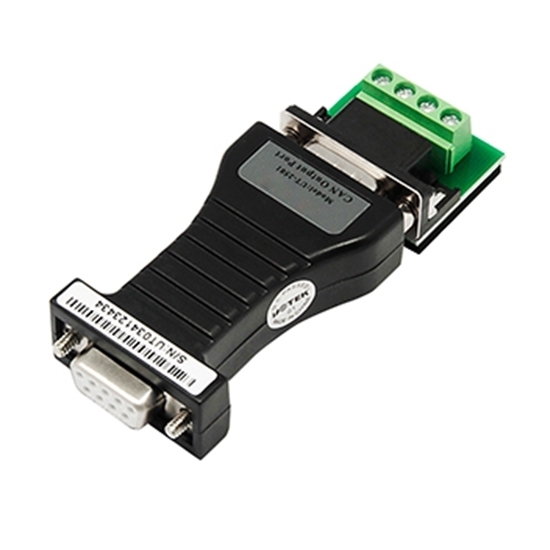

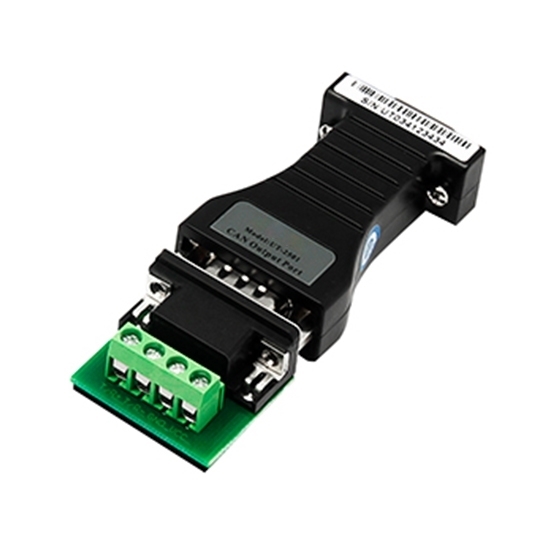

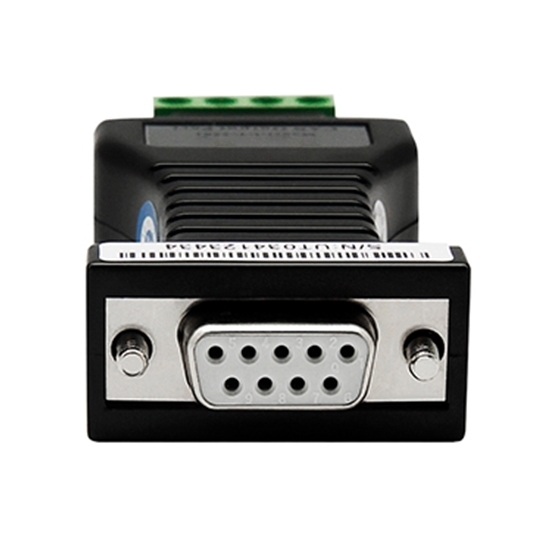

RS232 To CAN BUS Converter

0 reviews • Write a review

from

$100.94

Ex Tax: $100.94

Stock: In Stock
Model: RDDLZ-UT-2501
Weight: 1.00
SKU: RDDLZ-UT-2501

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price RS232 to CAN BUS adapter 300BPS-115.2KBPS baudrate, more than 1,200m (CANBUS port), 5m (RS-232 port) transmission distance. It is small in size and has no special requirements for wires and it is very convenient to use.

Specification

Model	RDDLZ-UT-2501
Standards	EIA/TIA RS-232C, CANBUS
Interface	RS-232 female, CANBUS DB9 male, terminal block
Working mode	Asynchronous half-duplex
Transmission media	Twisted-pair or shielded cable
Baudrate	300BPS-115.2KBPS
Dimension	63mm33mm17mm
Operating temperature	-40℃ to 85℃
Relative humidity	5% to 95%
Transmission distance	More than 1,200m (CANBUS port), 5m (RS-232 port)
Certificates	RoHS, CE, FC
Warranty	12 months

Dimension (mm/ inch)

Connection Diagram

Details

Tips: What is CAN Bus?

CANBus means CAN bus, also known as controller area network. It is currently the most widely used industrial field bus. The car you drive at home generally uses CAN bus as a control system. As a control system, it must have corresponding usage rules. This usage rule is called the communication protocol of the bus. This is similar to when we speak, we have to follow the corresponding grammar. If you say that Chinese follows the English grammar, it will be very awkward. Therefore, when we use the CAN bus for work, we must follow the relevant CAN bus communication protocol.
