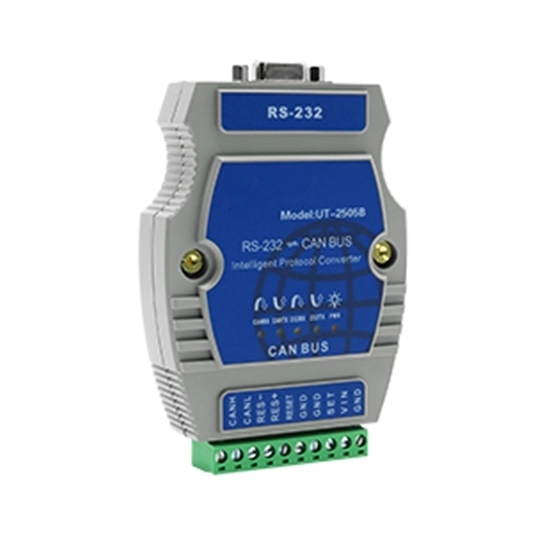

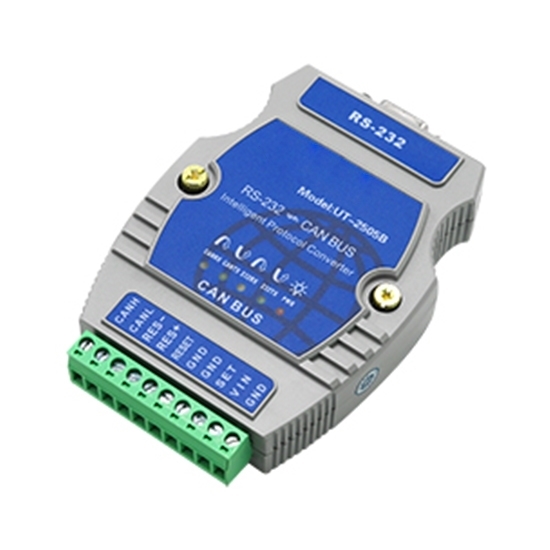

RS232 To CAN BUS Converter, Two-way Conversion

0 reviews • Write a review

from

$204.11

Ex Tax: $204.11

Stock: In Stock
Model: RDDLZ-UT-2505B
Weight: 1.00
SKU: RDDLZ-UT-2505B

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower price RS232 to CAN BUS adapter with 1000VDC isolated voltage, 5~95% (non-condensation) Relative Humidity, -40~85℃ operating temperature.

Features:

Supports bidirectional data transmission between CAN-bus and RS-232.
Supports CAN 2.0 protocol.
1-ch CAN-bus interface, 5Kbps-1Mbps transmission rate.
1-ch RS-232 interface, 600bps-230Kbps transmission rate.

Specification

Model	RDDLZ-UT-2505B
Data conversion modes	Transparent conversion, transparent tape identification conversion, modbus protocol conversion
Operating voltage	12-36VDC
Isolated voltage	1000VDC
Operating current	≤150mA@12V
Operating temperature	-40~85℃
Storage temperature	-40~85℃
Relative Humidity	5~95% (non-condensation)
Storage humidity	5~95% (non-condensation)
Certificates	RoHS, CE, FC
Warranty	12 months

Dimension (mm/ inch)

Tips: The Features of CAN Bus Control.

The CANBus data link layer protocol adopts a peer-to-peer communication method. Even if the host fails, the rest of the system can still operate (of course the performance is affected to a certain extent). When the status of a site changes, it can broadcast information to all sites.
The information transmission of CANBus is carried out through messages. There are 4 types of message frames: data frame, remote frame, error frame and overload frame. The data field of the CANBus frame is shorter, less than 8B, and the data length is given in the control field. Short frame transmission reduces the message error rate on the one hand, and also helps reduce the transmission delay time of other stations. The confirmation of frame transmission is completed by the sending station and the receiving station together. The ACK field sent by the sending station contains two "recessive" bits. After receiving the correct CRC field, the receiving station immediately sends a "occupied" bit ( dominant bit) to give the sending station a confirmed answer. CANBus also provides strong error handling capabilities, which can distinguish bit errors, padding errors, CRC errors, format errors, and response errors.
