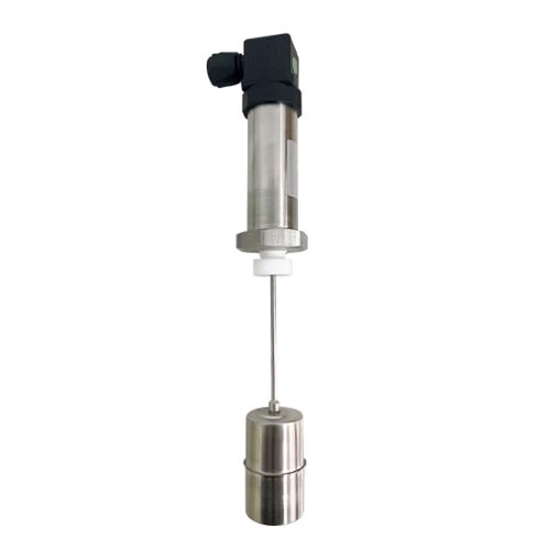

Magnetic Float Level Sensor For Alarm Switch

Magnetic Float Level Sensor For Alarm Switch
Magnetic Float Level Sensor For Alarm Switch
from
$256.62
Ex Tax: $256.62
  • Stock: In Stock
  • Model: RDDLZ-FS-MRDZ3
  • Weight: 1.00
  • SKU: RDDLZ-FS-MRDZ3

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetic float level sensor for alarm switch is a compact size and highly reliable, which is widely applied in water fountain, air condition, humidifier, bathroom equipment, sale machine, oil tank and chemical liquid level control.

Specification

ModelRDDLZ-SS142I-D1(BHG)
MaterialFloat bodySUS304
Float Ball316 floating ballΦ33X50
O-RingSilicon
WireOne inch chuck installation
Wire rod1007white line
Screw nut/
Reed switch technical parametersContact fromA
Max switching voltage100VDC
Max breakdown voltage220Vdc
Min switching current0.5A
Max contect rating10W
Maxcontant resisitance500mΩ
Min insulation resistance1010Ω
Operation statusResonant frequency2500Hz
Max operating frequency500Hz
Tempe operating-20~+100℃
Humidity95%RH(80℃)
ApplicationWater float sensor

Dimensions (Units: mm)

Components
