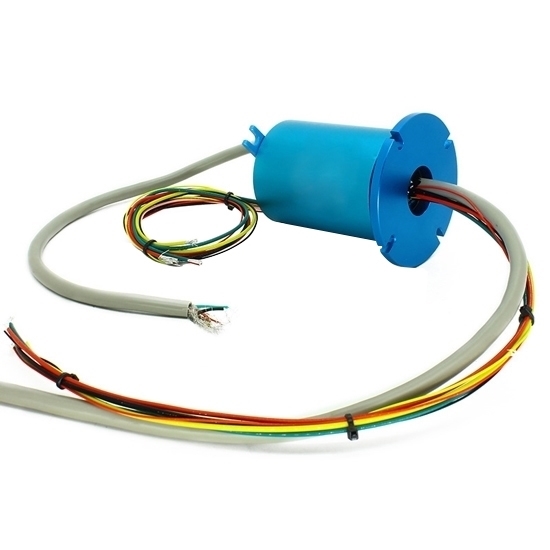

Factory price servo motor encoder slip ring is a special inner wiring and shielding design to avoid encoder errors. It can combine with pneumatic and hydraulic rotary unions. The contact material is precious metal with hard gold plating, which ensures wear resistant and ant-oxidative for a long working life.

Specification

• Model: RDDLZ-ZM056
• Number of Passages: 4 Passages
• Torque: 0.1N.m+0.03N.m/6 circuits
• Voltage Range: Power: 0~440VAC/VDC; Signal: 0~440VAC/VDC
• Lead Wire Spec.: Power: power cable or AWG #17 Teflon wire; Signal: 6 cores shielded cable or AWG#22 Teflon wire
• Max. Rotating Speed (Optional): 400 rpm, 800 rpm, 1200 rpm
• Working Temperature: -30℃~80℃
• Work Humidity: 0~85% RH
• Contact Material: Precious Metal
• Housing Material: Aluminum Alloy
• Working Life: 20/60/150 million for ref
• Insulation Resistance:≥1000MΩ/500VDC
• Lead Wire Length: standard 300mm (can be customized)
• Certification: CE, RoHS
• Electrical Noise: <0.01Ω
• Loss Rate: <0.02%
• Weight: About 1 kg

Note: If you want to customize the quantity of the power circuit (10A) and signal circuit (5A), please contact us.

Dimension Drawing (Unit: mm)

Standard Model List

Note: Please contact us if you have special requirements for RDDLZ slip ring. The package includes the controller.

Tip: Why choose RDDLZ servo motor encoder slip ring?

The servo motor encoder slip ring is used to transmit the servo motor encoder signal and the servo motor control signal. It can be used as a connector between the encoder and the servo motor while rotating 360°, and transmit different power and control signals at the same time. RDDLZ servo encoder slip ring has stable performance and is very reliable. It can be used with other switch signals and power lines, and pneumatic and hydraulic rotary joints. Internal wiring and special shielding module design can completely prevent the encoder from reporting error codes.
