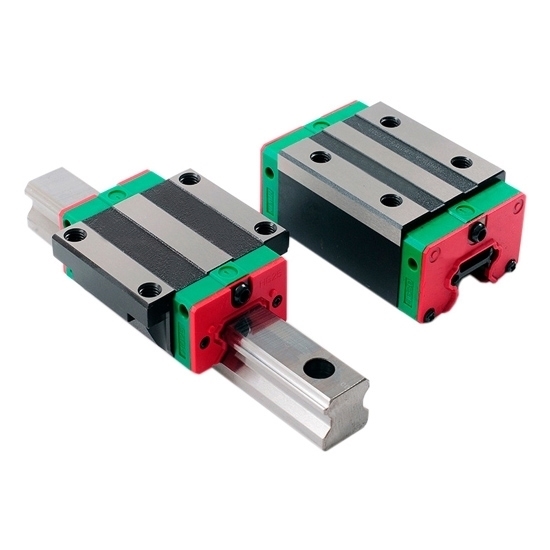

Low cost linear rails for sale online. Linear guideways with a 20mm linear bearing block can achieve high speed, high precision and smooth linear motion. The guide block can move easily and gently in a linear motion. 300~1500mm CNC linear rail length for selection. Linear guide rail is perfect for CNC precision machining and heavy-duty cutting machines.

Guide Block Features

20mm guide block with high speed, low friction and noise, high precision, long working period, high reliability, smooth movement, high transfer efficiency, no clearance and preload is available online.

Applications

RDDLZ linear guides with guide blocks are widely used in CNC precision machining, heavy-duty cutting machines, punching machines, marble cutting machines, automation equipment, grinding machines, high-speed transfer equipment and injection molding machines.

Specifications

• Model: RDDLZ-HGWCC20
• Block Mounting: Top to Bottom
• Sliding track: Linear guideways

Construction of CNC Linear Rail and Guide Block

350mm Linear Rails with 20mm Guide Block Dimensions

Datasheet (Unit: mm)

Tips: What is the static load rating of linear guideways?

Localized permanent deformation will be caused between the raceway surface and the rolling elements when a linear guideway is subjected to an excessively large load or an impact load while either at rest or in motion. If the amount of this permanent deformation exceeds a certain limit, it becomes an obstacle to the smooth operation of the linear guideway. Generally, the definition of the basic static load rating is a static load of constant magnitude and direction resulting in a total permanent deformation of 0.0001 times the diameter of the rolling element and the raceway at the contact point subjected to the largest stress. The value is described in the dimension tables for each linear guideway. A designer can select a suitable linear guideway by referring to these tables. The maximum static load applied to a linear guideway must not exceed the basic static load rating.
