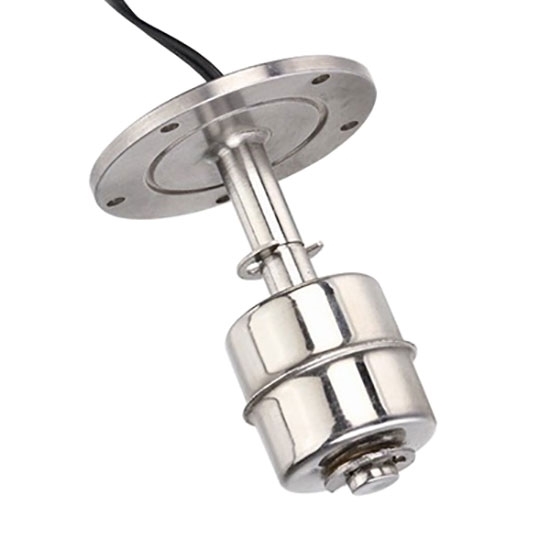

Magnetic Float Level Switch, Stainless Steel

0 reviews • Write a review

from

$63.49

Ex Tax: $63.49

Stock: In Stock
Model: RDDLZ-FS-MRDZ1
Weight: 1.00
SKU: RDDLZ-FS-MRDZ1

Available Options

Short Description

Contact Form

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetic float liquid level switch is a compact size and highly reliable, which is widely applied in water fountain, air condition, humidifier, bathroom equipment, sale machine, oil tank and chemical liquid level control.

Specification

Model		RDDLZ-FS-MRDZ1
Basics	Material	Stainless Steel
	Float Pressure	0.7 MPa
	Applicable Temperature	-40 ~ +125 ℃
	Withstand Voltage	1000V/10S
	Terminal Tensile Strength	≥2.2kg
	The Contact Resistance	N/A
	Min Insulation resistance	100 mΩ
Parts	Float	φ28*28mm
	Float Ball	10125
	Cap Nut	M10*1.0mm
	O-ring	φ14.3mm * φ8.7mm*2
	E-ring	φ14.2mm * φ7.2mm*1.4
	Wire	PVC 300mm
Reed Switch Technical Parameters	Contact Form (Optional)	SPST 1NO/ 1NC
	Contact Power Rating	50W
	Max Switching Voltage	DC350V/ AC300V
	Breakdown Voltage	600VDC
	Max Switching Current	DC0.7A/ AC0.5A
	Max Carry Current	2.5A
	Max Contact Resistance	100mΩ
	Min Insulation Resistance	10¹⁰Ω
	Get an electric shock life	10⁷

Dimensions (Units: mm)

Tips: Float liquid level switch for water tank

Generally, in the water treatment process, the water tank float level switch is directly related to the safety and reliability of the whole process. There are different types of water tank, including intermediate tank, backwash tank, production tank and waste tank. These tanks are different in size. These water tanks are controlled by float level switches. Different level switches will have different actions. But not a large water tank must be a few liquid level switch.

In the production tank, there are two kinds of high level switch and low level switch. The high level switch can detect whether the tank is full or not. If it is full, the water production will stop. The low level switch is used to check whether the water in the tank is sufficient. If it is insufficient, no more water can be sent out.
