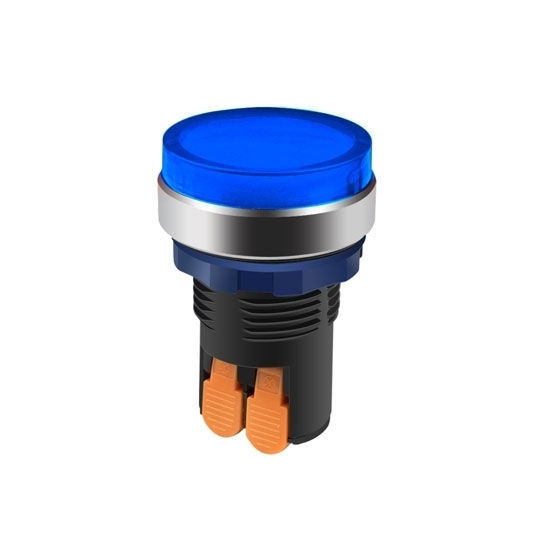

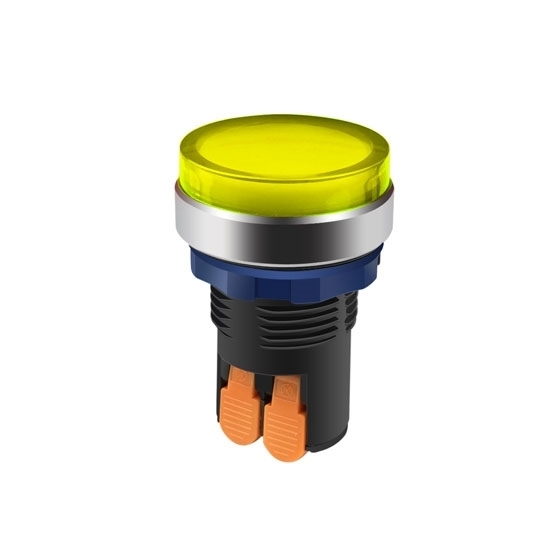

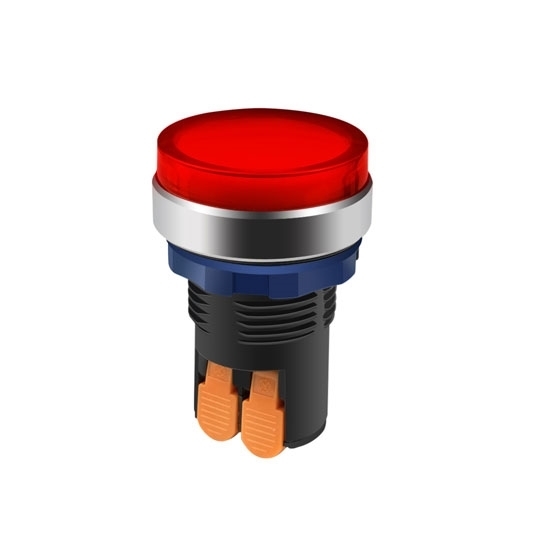

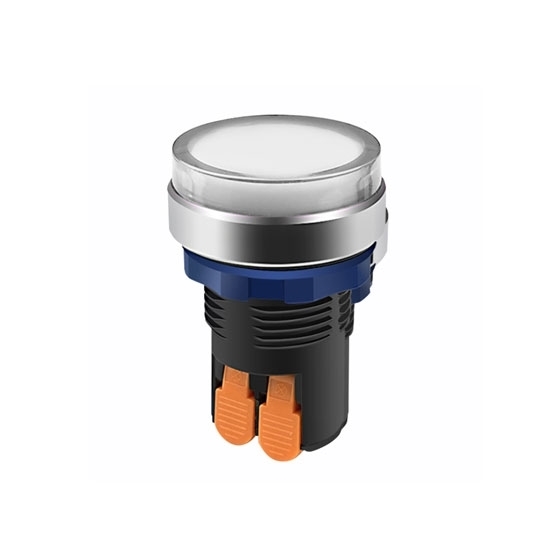

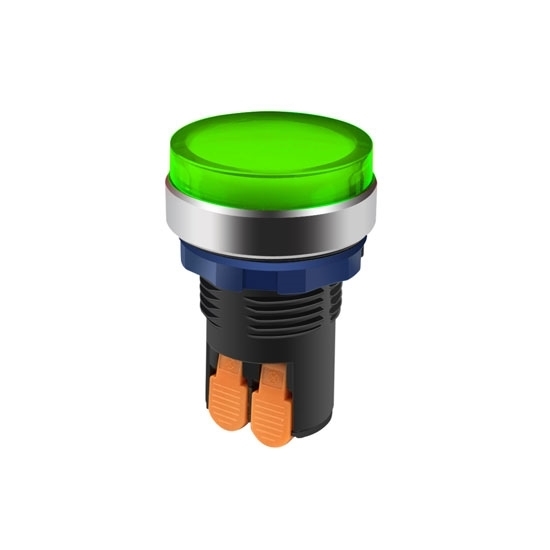

24V LED indicator light for low price, 20mA rated current, mechanical life time of one million times, IP68, high waterproof level, can choose blue, red, yellow, green and white indicator lamp.
Specification:
| Model | RDDLZ-IL-24V |
| Hole Size | M22mm |
| Voltage | 24V AC/DC |
| Color | Red, green, blue, yellow, white |
| Rated Current | ≤24V, ≤20mA, ＞24V, ≤10mA |
| Protection Class | IP68 |
| Heating Current | 25A |
| Contact Resistance | ≤ 50mA |
| Insulation Resistance | ≥ 1000MΩ |
| Shell Material | PC Plastic |
| Head Material | PC Plastic |
| Nut Material | Flame retardant PA66 |
| Base Material | Flame retardant PA66 |
| Head Coil | Aluminum oxide natural color |
| Operating Temperature | -40℃~80℃ |
| Working Humidity | 45~90% RH |
| Panel Thickness | ≤8mm |
| Electrical Life | 50,000 times |
| Mechanical Life | 1 Million times |
| Weight | 25.5g |
| Warranty Period | 12 Months |
24V LED Indicator Light Dimension (unit: mm)
Tips: Use environment of indicator light
In order to prevent terminal discoloration and other deterioration of the indicator light during storage, please avoid long-term storage and use in the following conditions.
1. In high temperature and humidity.
2. Corrosive gas environment
3. Places exposed to direct sunlight.
For the opening of mounting holes, please refer to the opening sizes of different switches. When opening according to the actual switch sample, there should be a certain margin. Non-waterproof switch. Please avoid the setting and use of water contact places. Please do not allow the switch to freeze and dew.
