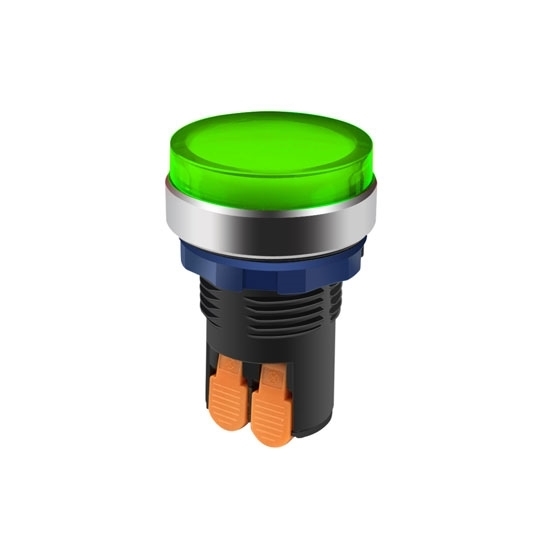

Green 12V Led Indicator Light

Green 12V Led Indicator Light
Green 12V Led Indicator Light
Green 12V Led Indicator Light
Green 12V Led Indicator Light
Green 12V Led Indicator Light
Green 12V Led Indicator Light
Green 12V Led Indicator Light
Green 12V Led Indicator Light
Green 12V Led Indicator Light
Green 12V Led Indicator Light
Green 12V Led Indicator Light
from
$15.74
Ex Tax: $15.74
  • Stock: In Stock
  • Model: RDDLZ-IL-12V
  • Weight: 1.00
  • SKU: RDDLZ-IL-12V

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

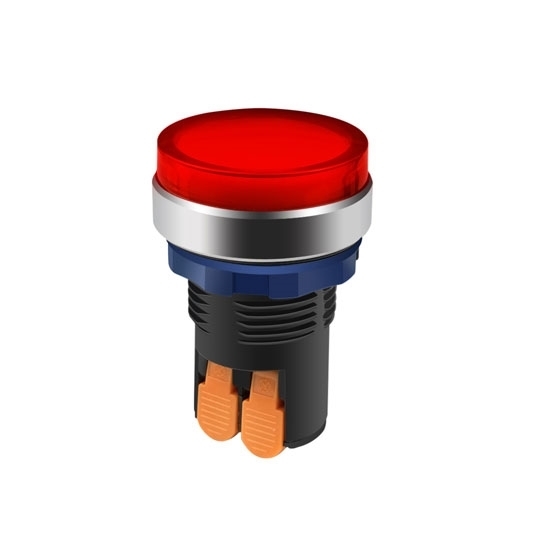

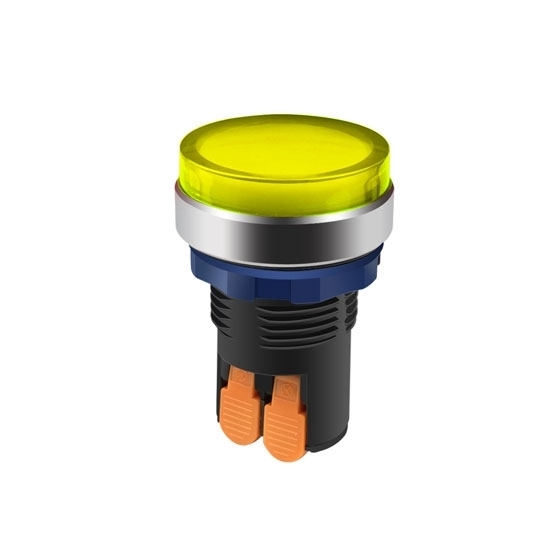

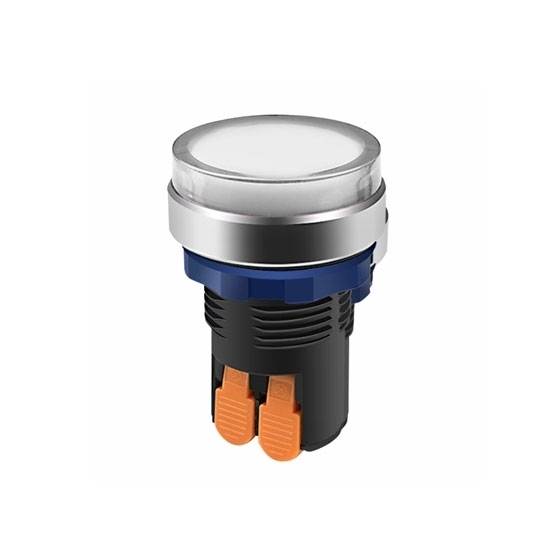

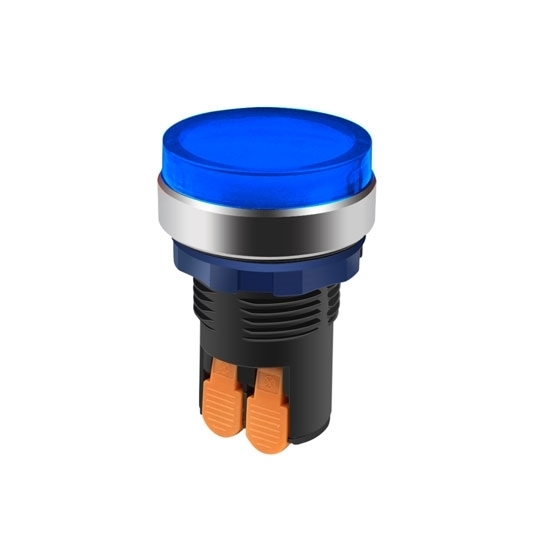

Led round indicator light for sale, 12V AC/DC rated voltage, 12 months warranty, available in four colors: green, yellow, red, white and blue. Widely used in textile equipment and operating room mounting panels, machines and consoles or ships.

Specification:

ModelRDDLZ-IL-12V
Hole SizeM22mm
Voltage12V AC/DC
ColorRed, green, blue, yellow, white
Rated Current≤24V, ≤20mA, >24V, ≤10mA
Protection ClassIP68
Heating Current25A
Contact Resistance≤ 50mA
Insulation Resistance≥ 1000MΩ
Shell MaterialPC Plastic
Head MaterialPC Plastic
Nut MaterialFlame retardant PA66
Base MaterialFlame retardant PA66
Head CoilAluminum oxide natural color
Operating Temperature-40℃~80℃
Working Humidity45~90% RH
Panel Thickness≤8mm
Electrical Life50,000 times
Mechanical Life1 Million times
Weight25.5g
Warranty Period12 Months

12V LED Indicator Light Dimension (unit: mm)

Tips: Indicator light characteristics

1. Ultra-short flat round lampshade.
2. Indicator lamp has built-in super bright LED lamp beads.
3. Wide power supply voltage is resistant to vibration, shock resistant, safe and reliable.
4. Concealed terminal blocks.
5. Small size, ultra-low energy consumption.
6. Convenient wiring, safe and reliable.
