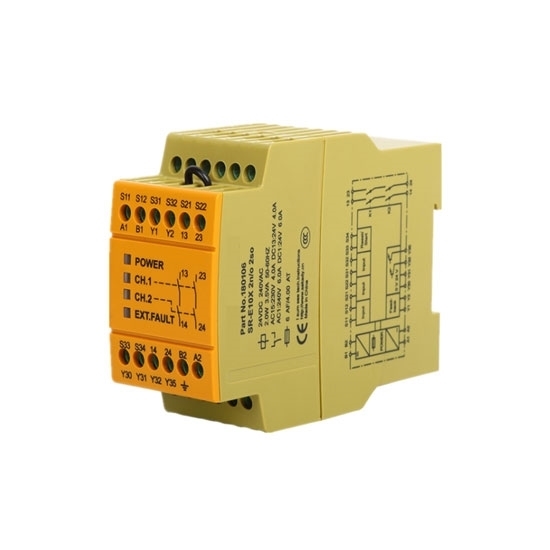

Safety Relay 24V AC/DC 2NO

0 reviews • Write a review

from

$308.65

Ex Tax: $308.65

Stock: In Stock
Model: RDDLZ-SR-E10X
Weight: 1.00
SKU: RDDLZ-SR-E10X

Available Options

Short Description

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Safety relay DC 24V, AC 24V, 42V, 48V, 115V, 120V, 230V, or 240V is optional, safety contacts 2NO, frequency between 50-60Hz, light weight, high safety and manufacturer direct sales.

Specifications

Basics	Model	RDDLZ-SR-E10X
Basics	Weight	0.5 kg
Technical Parameters	AC supply voltage	24V, 42V, 48V, 115V, 120V, 230V, 240V
	DC supply voltage	24V
	Voltage tolerance	-15-+10℃
	Power consumption	AC: 5.5VA, DC: 2.5W
	Frequency	50-60Hz
	Resihual ripple	DC: 160％
	Voltage and current at reset circuit and feedback loop	UB=24V, DC: 25mA
	Safety contacts	(N/O): 3
	Auxliary contact	(N/C): 1
	Contact material	AgCuNi+0.2μAu
	Extermal contact fuse protection	EN 60947-5-1 (Ik=14kA)
	Blow-out fuse quick	10A
	Blow-out fuse slow	6A
	Safety cut-out	24V
	Characteristic	B/C
	Semiconductor output 24V	24V DC, 20mA
	Extermal power supply	24V DC
	Pollution degree	2
	Overage category	3/2
	Rated insulation	250V
	Rated impulse withstand	4kV
Environment	Ambient temperature	-10℃~+55℃
Environment	Storage tempetature	-40℃~+85℃

Safety Relay Dimensions & Connecting diagram

Details

Tips: Sefety Relay Function

Expand the scope of control. For example, when the multi-contact relay control signal reaches a certain value, it can switch, disconnect, and turn on multiple circuits at the same time according to different forms of the contact group.
Zoom in. For example, sensitive relays, intermediate relays, etc., can control very high power circuits with a very small amount of control.
Integrated signal. For example, when a plurality of control signals are input to a multi-winding relay in a prescribed form, the comparison is integrated to achieve a predetermined control effect.
automatic, remote control, monitoring. For example, a relay on an automated device, together with other appliances, can form a program control circuit for automated operation.
