Note: This steam trap cannot be used for drinking water.

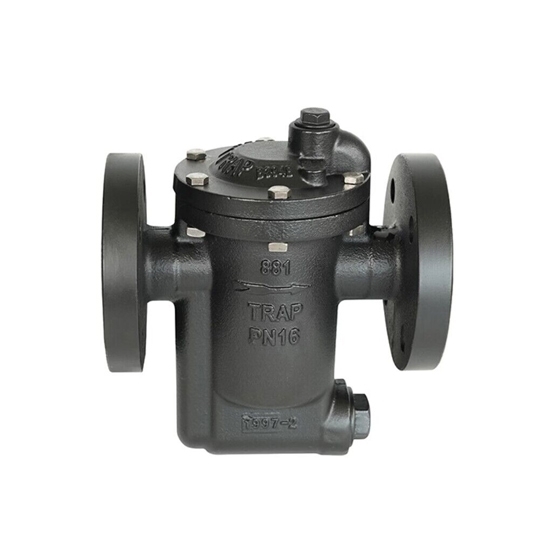

1/2" inch (DN15) flanged inverted bucket steam traps, leveraging their ingenious buoyancy-driven operation, play a pivotal role in a variety of industrial settings. Their principle of rising to seal off when condensate is present and descending to allow steam passage ensures optimal steam quality, energy conservation, and condensate removal. These steam traps find their application in diverse scenarios, from powering turbines in power generation plants to maintaining precise temperatures in chemical reactions and guaranteeing sterile conditions in healthcare facilities.

Specifications

Features

• Durable Construction: Inverted Bucket Steam Traps are built to withstand harsh industrial environments. They are typically made from robust materials such as cast iron or stainless steel, ensuring long-lasting performance even in high-pressure and high-temperature applications.
• Inverted Bucket Design: The standout feature of this steam trap is its innovative inverted bucket mechanism, which enables precise and efficient condensate removal.
• Versatile Applications: Inverted Bucket Steam Traps (DN15) find applications across various industries, including manufacturing, petrochemical, pharmaceuticals, food processing, and HVAC systems. They are suitable for both low-pressure and high-pressure steam systems.
• Excellent Temperature Control: These traps provide precise temperature control by efficiently removing condensate as soon as it forms. This prevents temperature fluctuations within the system, ensuring a consistent and reliable heat transfer process.

Dimensions （Unit: mm)

Drainage Capacity

Applications

Flanged Inverted Bucket Steam Traps are widely employed across industries, from power generation and manufacturing to healthcare and HVAC systems, to optimize steam quality, conserve energy, and ensure efficient condensate removal. Their versatile applications enhance operational efficiency and cost-effectiveness in diverse settings.

Tips: Flanged Inverted Bucket Steam Traps Advantages

• Efficiency: These traps are highly efficient in removing condensate from steam systems. They ensure that condensate is promptly and precisely discharged, allowing for optimal steam utilization and heat transfer efficiency. This efficiency leads to energy savings and reduced operational costs.
• Steam Conservation: Flanged Inverted Bucket Steam Traps excel at preventing steam loss. Their inverted bucket design seals the trap's orifice when condensate is present, ensuring that valuable steam is not wasted, contributing to improved energy efficiency.
• Reduced Water Hammer: Water hammer, caused by the sudden release of condensate, can damage pipes and equipment. These traps mitigate water hammer by controlling the discharge of condensate, enhancing system safety and equipment longevity.
• Durability: Constructed with high-quality materials, these steam traps are known for their durability and long service life. Their robust design can withstand harsh industrial conditions, reducing maintenance and replacement costs.
• Versatility: Flanged Inverted Bucket Steam Traps are versatile and suitable for a wide range of steam system applications, from main steam lines to process equipment and heat exchangers. Their adaptability makes them a valuable asset in various industries.
• Energy Savings: By maintaining proper steam quality and preventing steam loss, these traps contribute to significant energy savings. Reduced fuel consumption and lower carbon emissions are positive outcomes of their efficient operation.
