60 KVA 3 Phase Variac Transformer

Free Shipping

60 KVA 3 Phase Variac Transformer

0 reviews • Write a review

from

$6,389.89

Ex Tax: $6,389.89

Stock: In Stock
Model: RDDLZ-VVR-TH60
Weight: 1.00
SKU: RDDLZ-VVR-TH60

Available Options

Output Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 Phase adjustable voltage transformer for sale, 60 kVA, the AC power supply adopts a clear metal instrument panel, with high design precision and compact structure, variac transformer is widely used in laboratory, factory equipment, foam cutting and household electricity.

Specification

Model: RDDLZ-VVR-TH60
Rated Power: 60 kVA
Input Voltage: 380V
Output Voltage: 0~430V, 0~500V
Frequency: 50/60 Hz
Rated Full Offset Current: 80A
Insulation Resistance: ≥5 MΩ
Pressure Resistance: 2000 V/1min
Weight: 300 kg
Dimension: 345mm x 450mm x 1100mm
Certificate: CE

Wiring method

Installation and use of three-phase variac transformer should be noted: the wiring must be firmly pressed, there can be no loose.

Three-phase variac transformer is a three-phase four-wire system, the input side should be connected to the zero line, when using the regulator to adjust the voltage should be adjusted from 0V to high voltage, the output voltage is different corresponding to the load power is different.

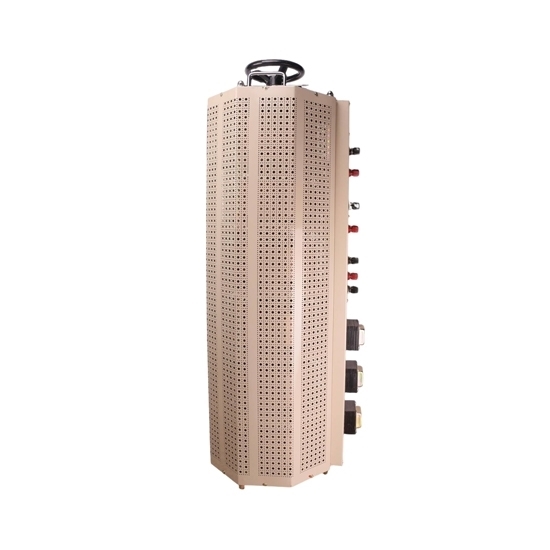

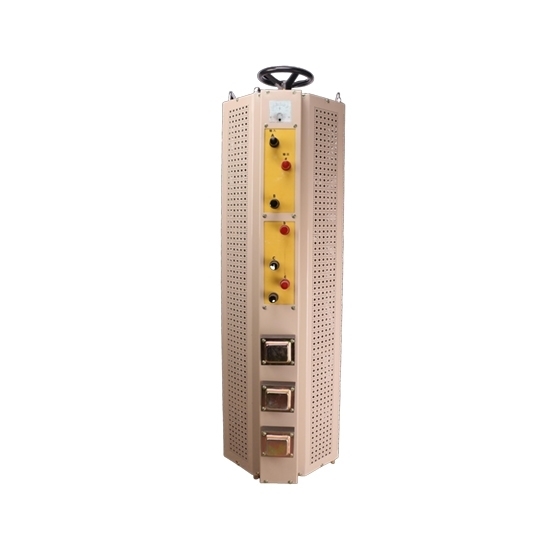

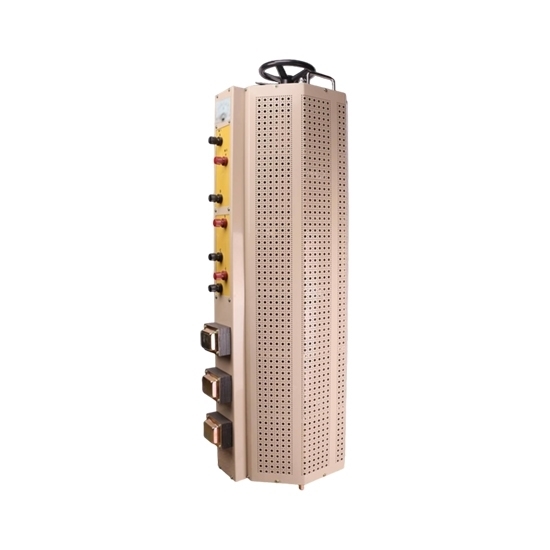

3 Phase 60 kVA Variable Voltage Transformer Details

Tips: Advantages of RDDLZ three phase variac transformer

RDDLZ three phase voltage regulator realizes precise temperature control through precise control of voltage, current and power. And with its advanced digital control algorithm, the power usage efficiency is optimized. It plays an important role in saving energy.
