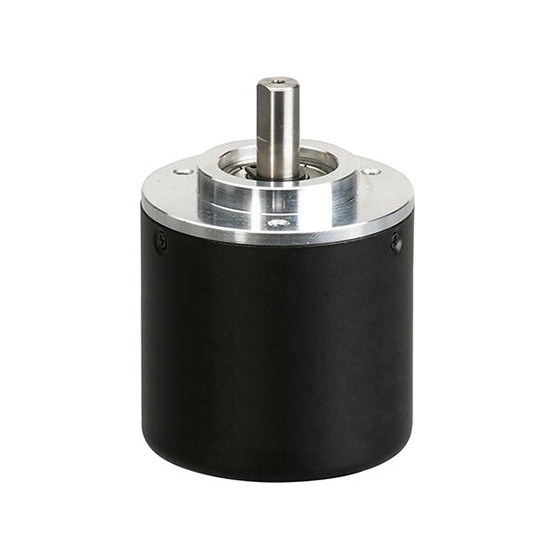

Incremental Rotary Encoder, Shaft, 100 Ppr

0 reviews • Write a review

from

$155.24

Ex Tax: $155.24

Stock: In Stock
Model: RDDLZ-IRE-100PS
Weight: 1.00
SKU: RDDLZ-IRE-100PS

Available Options

Short Description

Voltage

Output Mode

Cable Length

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Incremental optical rotary encoders with 100 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

Basics

Model

RDDLZ-S3806G-100BM

Weight

100g

Wiring

Color

Red

Black

Green

White

Yellow

Brown

Gray

Orange

Signal

V_cc

GND

A-

B-

Z-

Mechanical properties

Maximum shaft speed (r/min)

5000

Starting torque

<0.03Nm (25℃)

Maximum shaft load

Radial load: 50N, axial load: 20N

Shock resistance

50G/11ms

Anti-vibration

10G (10~2000Hz)

Rotational inertia

4X10^-8kgm²

Operating temperature

-30~+85℃ (-22~+185℉)

Storage temperature

-35~+95℃ (-31~+203℉)

Protection Level

IP51

Electrical characteristics

Output circuit

Open-collector output

Voltage output

Push-pull output

Line driver output

Supply voltage V_cc

DC 5V±0.2

DC 5～24V

DC 5V±0.2

DC 5～24V

DC 5V±0.2

DC 5～24V

DC5V±0.2

DC 5～24V

Current consumption

≤60mA

≤100mA

Output high level

≥3.5V

≥V_cc-2.5V

≥2.5V

≥V_cc-2.5V

Output low level

≤0.5V

≤1.0V

Rise time T_r

≤500ns

≤1500ns

≤200ns

≤500ns

Fall time T_f

≤100ns

≤300ns

≤200ns

Maximum frequency response

0～100kHz

Model Selection

Shaft type	Diameter of shell	Diameter of shaft	Connection type	Cable length *	Resolution	Production identifier	Z signal	Z signal wavelength	Output mode *	Voltage *
S: Shaft	38: 38mm	06: 6mm	G: Cable edge output	1: 1m 2: 2m 3: 3m 4: 4m	100: 100 ppr	B	M: Output 1 if receiving Z signal	Default: 1T	C: Open-collector NPN CP: Open-collector PNP T: Voltage ouput NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272	5: +5VDC 830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
Compact and lightweight, suitable for automation equipment with limited installation space.
Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: Analysis of rotary encoder's common malfunction

Deformation of the rotation axis
The common reason for this to happen is that the lock nut for fixing the nut or the locking potentiometer is over-tightened while installing, so it is recommended that the rotation axis shall be about 1 mm above the nut surface after the nut is tightened.
Inflexible rotation
It is usually caused by dust going into the shaft or lubricant becoming dry, normally put a small amount of gasoline on the shaft and it should be done while rotating the shaft.
Poor connection
There can be two cases, the first is when the reed has lack of flexibility, and the second is that the connection between the lead pin and the carbon film is poor. Both cases can be repaired. In the first case, we shall press down the contacts and the root of the spring lamination. In the second case, we shall use pliers to clamp the lead pin.
Malfunction with alarms
It means that the battery needs to be replaced. If the position memory of the reference point is lost, the reference point return operation must be performed.
