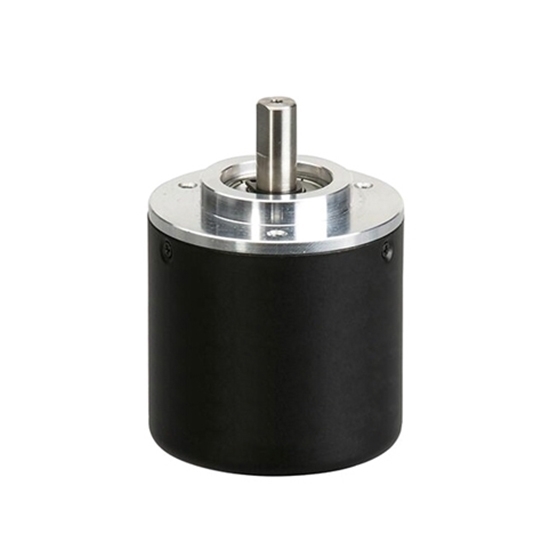

Incremental optical rotary encoders with 3000 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

Model Selection

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

1. The incremental optical encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
2. The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
3. Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
4. Compact and lightweight, suitable for automation equipment with limited installation space.
5. Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: Zero search of incremental encoder without Z signal

On the market there are many incremental rotary encoders that don't have a Z signal. If the encoder is mounted on the motor shaft, the Z signal no need to use. If mounting on the loading shaft, Z signal need to add a limit switch to achieve. After receiving the signal of the limit switch, keep decelertion operation, until the signal of the limit switch disappears stop operation, and set as zero point. If the limit switch accuracy is not enough, use the photoelectric switch or hall sensor.
