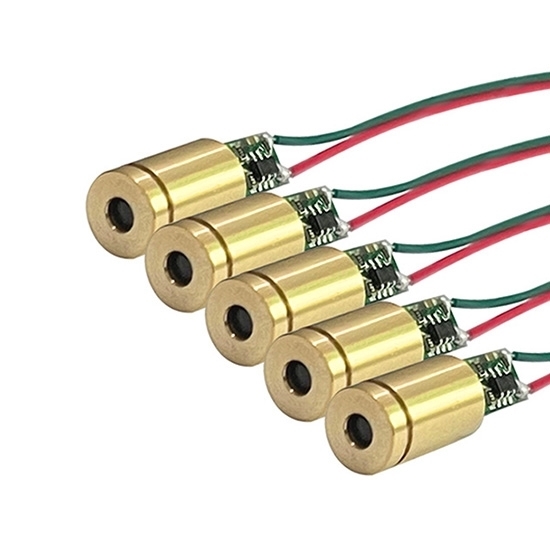

Infrared Laser Module, Night Vision Module, 850nm 50mW

0 reviews • Write a review

from

$85.62

Ex Tax: $85.62

Stock: In Stock
Model: RDDLZ-LM-LXDZ
Weight: 1.00
SKU: RDDLZ-LM-LXDZ

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The infrared dot laser module is very suitable for night vision systems, positioning tasks, and other scenarios that require precise infrared projection. It combines flexibility and durability, making it suitable for precise operations in low light conditions. Infrared laser module with constant voltage and current is not easily damaged and can be illuminated for a long time.

Specification

Model	RDDLZ-LXDZ-TC10650AD5
Size	6mm*10mm (customizable)
Material	Environmentally friendly copper
Surface treatment	Matte treatment (customizable)
Service life	15000h+
Output wavelength	850nm (customizable)
Output Power	5mW (customizable)
Maximum range	More than 1000 meters
Spot size at 10 meters	Less than 12mm (customizable)
Fixed/Adjustable focal length	fixed (customizable light angle)
Lens material	Imported acrylic optical lens
Circuit control	ACC constant current control board
Maximum working current	3V (customizable)
Operating mode	continuous mode (customizable)
Wire	DC power wiring (ordinary connecting line length can be customized)
Operating temperature	-10~80℃ (depends on laser tube parameters)
Storage temperature	-40~+80℃ (depends on laser tube parameters)

We provide customized services for wavelength, power, and spot effects, etc. You can contact us to discuss your needs and obtain tailored solutions.

Dimension (mm)

The dimensions are measured manually and may have errors. Please refer to the actual product for accuracy.
You can contact us to customize other sizes.

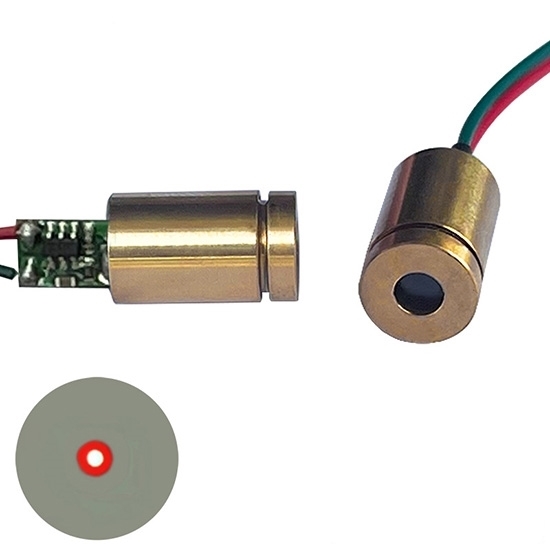

Product Display

Tips: Knowledge of laser module selection

Laser is commonly divided into: blue purple laser (405nm), blue laser (440-450nm), green laser (515-540nm), red laser (630-670nm), and infrared invisible light laser (780-980nm).
The higher the laser power, the brighter it is.
Laser modules are generally divided into point, straight line, cross line, diffused spot or customized light shape.
When in use, it is not necessarily better to have higher optical power. It depends on the working environment of the device and can meet the requirements. The higher the power, the higher the price and the higher the risk.
It must be strictly used according to the product specifications, and the voltage and current must comply with the parameters.
Laser has strict requirements for heat dissipation, and all lasers must be equipped with a heat dissipation seat to work. The higher the current, the stronger the light, and the greater the heat generation.
High power and high brightness, can work under strong light, but the accuracy is slightly lower.
Laser is harmful to the eyes, please do not direct it towards the eyes. (If you need to protect your eyes, you can wear laser protective glasses)
Please keep the laser product out of reach of children.
Please dispose of discarded lasers correctly to make the earth cleaner.
