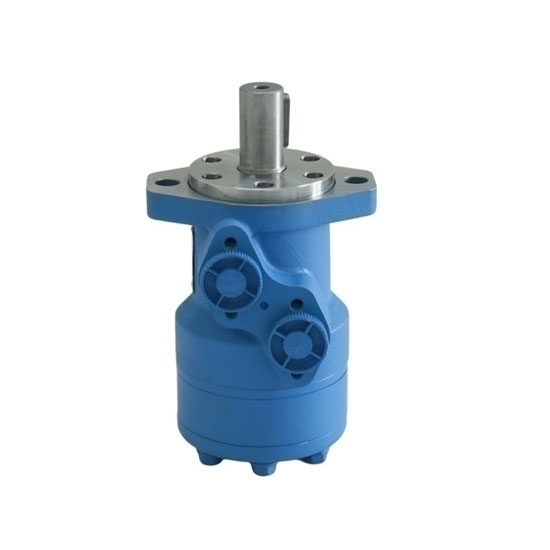

Hydraulic Orbital Motor, 395cc/rev

Hydraulic Orbital Motor, 395cc/rev
Hydraulic Orbital Motor, 395cc/rev
0 reviews • Write a review
from
$329.39
Ex Tax: $329.39
  • Stock: In Stock
  • Model: RDDLZ-HOM-395
  • Weight: 1.00
  • SKU: RDDLZ-HOM-395

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Favorable price hydraulic orbital motor is the design of disc distribution flow, which can provide improved performance at low speed and higher volumetric for the automatically compensated wear. It can be used on heavy vehicles and machinery in traction drive applications.

Specification

ModelRDDLZ-OMP-395
Shaft Type (Optional)Flat Key, Splined
Flange Type (Optional)2 Bolts, 4 Bolts
Displacement395 cc/rev (395 cm3/rev)
Working Pressure15 MPa
FlowContinuous57 LPM
Intermittent68 LPM
Max.SpeedContinuous156 rpm
Intermittent180 rpm
PressureContinuous90 ∆Bar
Intermittent100 ∆Bar
TorqueContinuous481 Nm
Intermittent525 Nm
Weight8.5kg

Note:

  • A simultaneous maximum torque and maximum speed are not recommended.
  • ∆Bar refers to true pressure difference between inlet port and outlet port.
  • Continuous Rating means that the motor may be run continuously at these ratings.
  • Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

Dimensions (Unit: mm)

L1=203mm

Hydraulic Orbital Motor Shaft (Unit: mm)

Flange Types (Unit: mm)

L=210mm

Details

Tips: Difference between hydraulic orbital motor and gear motor

Hydraulic orbital motors and gear motors are different in appearance, size, torque, connection mode, application places, etc., but the functions are the same, they are all for speed change, and sometimes they can be interchanged. Orbital is a form of reducer, as is gear. That is, the orbit motor has a compact appearance, small size, and a gear motor with high load resistance and durability.
