200A 120V 24000W Variable DC Power Supply

Free Shipping

200A 120V 24000W Variable DC Power Supply

0 reviews • Write a review

from

$6,798.59

Ex Tax: $6,798.59

Stock: In Stock
Model: RDDLZ-VDCPS120200K
Weight: 1.00
SKU: RDDLZ-VDCPS120200K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

200 amp 120 volt variable DC power supply offers reliability and adaptability, the dependable and adjustable power source for diverse applications. With its adjustable voltage and current capacities, complemented by advanced digital control features, this power supply proves itself as an efficient and dependable source for experimenting and advancing in electronic projects.

Specification

Model	RDDLZ-JK120200K
Input Voltage	Single Phase 110V AC, Three Phase 220V or 380V AC (+/- 10%) (240V, 400V, 415V, 440V, 460V 480V can be customized)
Output Voltage Range	0-120V
Output Current Range	0-200A
Output Power	24000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

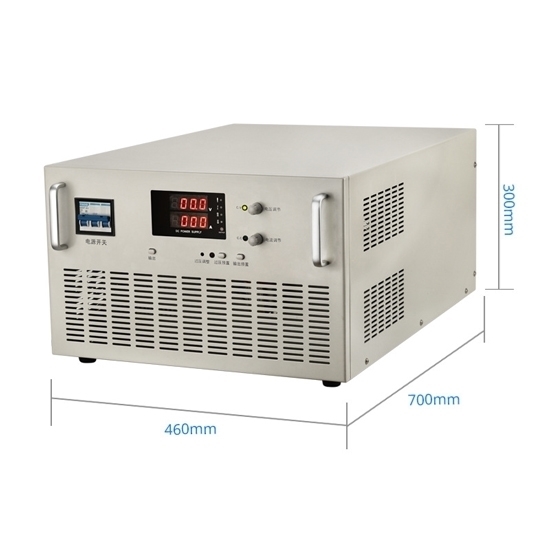

Size	700 (L) x 480 (W) x 295 (H) mm
Weight	45kg

Detail

Tips: Can a variable DC power supply be used in educational settings?

Yes, a variable DC power supply is highly suitable for educational settings. It provides a controlled and adjustable voltage output, allowing students to experiment with different electronic circuits and components. This versatility is crucial for teaching principles in physics, engineering, and electronics. The ability to vary voltage helps students understand the impact of different power levels on circuit behavior. Moreover, it promotes hands-on learning, enabling students to design, build, and test circuits in a controlled environment. This practical experience enhances their comprehension of electrical concepts and fosters problem-solving skills. A variable DC power supply is a valuable tool in laboratories and workshops, contributing to a comprehensive and interactive learning experience for students pursuing STEM (science, technology, engineering, and mathematics) education.
