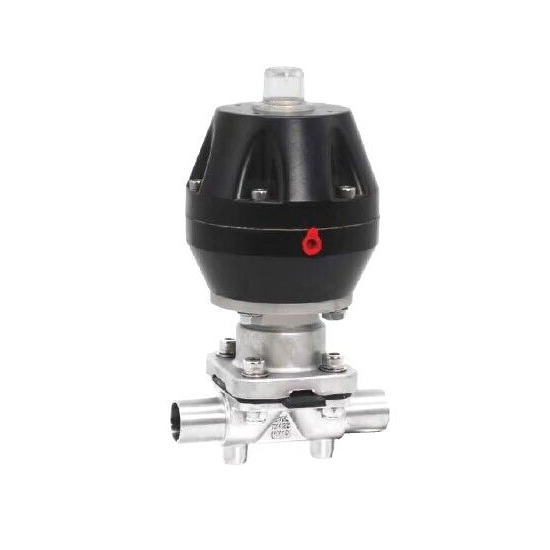

1/2" Pneumatic Diaphragm Valve, Sanitary

1/2" Pneumatic Diaphragm Valve, Sanitary
1/2" Pneumatic Diaphragm Valve, Sanitary
0 reviews • Write a review
from
$303.07
Ex Tax: $303.07
  • Stock: In Stock
  • Model: RDDLZ-PDV-15
  • Weight: 1.00
  • SKU: RDDLZ-PDV-15

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This diaphragm valve cannot be used for drinking water.

Get a pneumatic diaphragm valve with an actuator at low price. 1/2 inch (DN15) sanitary diaphragm valve adopts a welding connection and controls the flow accurately, is an ideal choice for processes that require frequent cleaning or sterilization.

Specifications

  • Model: RDDLZ-GMG661F/GMG6K61F/GMG6B61F-10RL
  • Size: DN15 (1/2 inch)
  • With Actuator: Yes
  • Actuator Type: Double Acting/Normally Open/Normally Closed
  • Structure Type: Weir Type
  • Function: Interception
  • Connection Form: Welding
  • Diaphragm Quantity: Double Diaphragm
  • Drive Mode: Pneumatic
  • Level: Sanitary Level
  • Type (Channel Position): Two-Way
  • Weight: About 4kg

Dimensions (Unit: mm)

DNLDdBC
1510812.716110195


Applications

Pneumatic sanitary diaphragm valves are commonly used in applications that require precise control of fluid flow and hygienic conditions. These valves are frequently found in the pharmaceutical, food and beverage, and biotechnology industries.

Tips: What is a diaphragm valve?

A diaphragm valve is a type of valve used to control the flow of fluid through a pipeline. It consists of a flexible diaphragm made of rubber or another elastomeric material that separates the valve body into two chambers. The diaphragm is attached to a compressor, which is responsible for moving the diaphragm up and down to regulate the flow of fluid through the valve. When the diaphragm is raised, it allows fluid to flow through the valve, and when it is lowered, it blocks the flow of fluid. Diaphragm valves are commonly used in a variety of industries, including pharmaceuticals, food and beverage, water treatment, and chemical processing.
