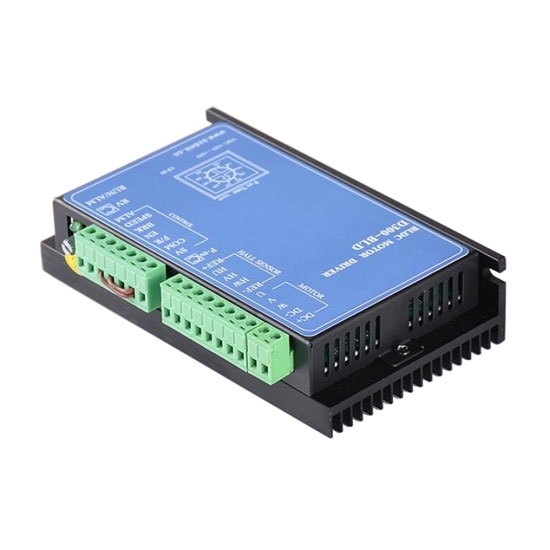

18V-56V Brushless DC Motor Controller For 24/48V BLDC Motor

0 reviews • Write a review

from

$196.98

Ex Tax: $196.98

Stock: In Stock
Model: RDDLZ-BLDC-C300B
Weight: 1.00
SKU: RDDLZ-BLDC-C300B

Available Options

Short Description

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Brushless DC motor driver works at 18V to 56V power supply and typical power is 48V DC. Its speed control is up to 20000 rpm, output current is up to 15A, used for worm and planetary gear motor.

Specification

Model	RDDLZ-BLD300 (Click it to see more controller specs)
Power Supply	18V ~ 56V DC
Typical Power	48V DC
Rated Current	15A
Max. Output Current	15A
Over Voltage Protection	5V
Under Voltage Protection	12mA
External Potentiometer	10KΩ
Input Analog Voltage	5 VDC
Speed Control Range	20000rpm
*Limited by the maximum rated speed of the motor

Dimensions (Unit: mm)

Details

Tips: Working principle of brushless DC motor controller

Brushless DC motor controller uses the voltage and frequency modulation technology in power electronics technology to modulate the DC power stored in the power battery into rectangular wave or sine wave AC power required to control the motor, and change the voltage, current amplitude or frequency of the output power. In turn, the motor speed and torque are changed to achieve the purpose of controlling the speed and acceleration of the entire vehicle.
