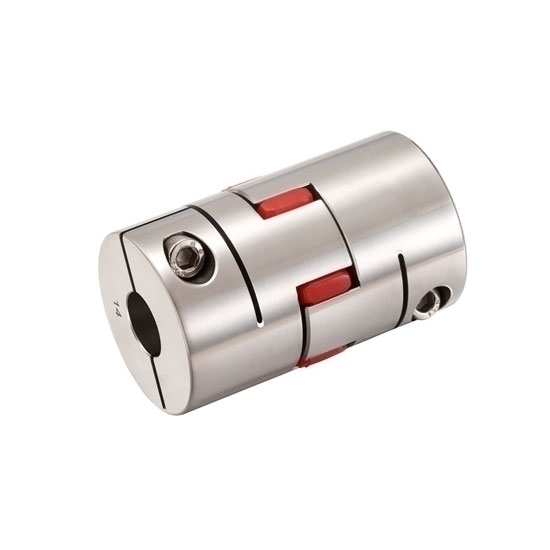

Curved Jaw Coupling, 120 X 160mm

0 reviews • Write a review

from

$789.37

Ex Tax: $789.37

Stock: In Stock
Model: RDDLZ-SC-GFCG-120160
Weight: 1.00
SKU: RDDLZ-SC-GFCG-120160

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Our curved Jaw Coupling is the ideal solution for your power transmission needs, with an outer diameter of 105mm and a length of 140mm. Its adaptable design ensures that it can be integrated seamlessly into various applications, making it a cost-effective choice for any industry.

Specification

Model: RDDLZ-SC-GFCG-120160
Rated Torque: 1040 Nm
Eccentricity Allowed: 0.02mm
Allowable Declination: 1∠°
Allowable Axial Deviation: ±1.00mm
Allowable Speed: 5200rpm
Static Torsional Stiffness: 7200 Nm/rad
Moment of Inertia: 1.3 x 10^-1Nm
Bushing Material: 304 Stainless steel
Rubber Block Material: Polyurethane imported from Germany
Surface Treatment: Polished
Weight: 9300g
Certificate: ISO9001, REACH, RoHS
Warranty: 12 Months

120 x 160mm Flexible Jaw Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size: 24-25-28-30-32-35-38-40-45-46-47-48-50-60-65
ΦD: 120
L: 160
LF: 91.1
LP: 27.4
M: M10
Tightening Torque: 25 Nm

Tips: Can flexible jaw couplings compensate for misalignment in multiple axes?

Flexible jaw couplings are designed to accommodate misalignment between shafts, but the extent to which they can compensate for misalignment in multiple axes depends on the specific design and type of the coupling. They are primarily used to address angular and parallel misalignment, not misalignment in multiple axes simultaneously. Let's break down the different types of misalignment that flexible jaw couplings can handle:

Angular Misalignment: Flexible jaw couplings can compensate for angular misalignment, which occurs when the shafts are not perfectly aligned at an angle to each other.
Parallel Misalignment: They can also handle parallel misalignment, which is when the shafts are not perfectly aligned in a linear or axial direction.

However, they may not effectively compensate for misalignment in multiple axes simultaneously, such as both angular and parallel misalignment at the same time. Other types of flexible couplings, such as universal joints or Oldham couplings, may be better suited for dealing with complex misalignment scenarios involving multiple axes.
