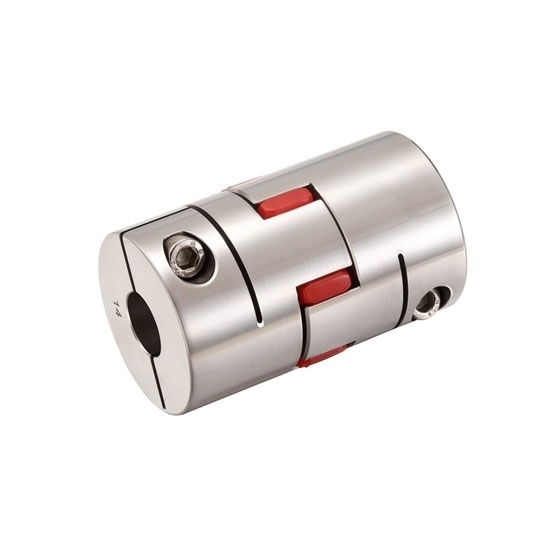

Curved Jaw Coupling, 25 X 34mm

Curved Jaw Coupling, 25 X 34mm
Curved Jaw Coupling, 25 X 34mm
0 reviews • Write a review
from
$89.99
Ex Tax: $89.99
  • Stock: In Stock
  • Model: RDDLZ-SC-GFCG-2534
  • Weight: 1.00
  • SKU: RDDLZ-SC-GFCG-2534

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Curved plum jaw coupling bore size 6mm to 16mm, ΦD2mm, L 34mm, detachable design, easy to install or DIY anything you want, the clamp coupling is light in weight and suitable for equipment running at medium and high speeds.

Specification

  • Model: RDDLZ-SC-GFCG-2534
  • Rated Torque: 9 Nm
  • Eccentricity Allowed: 0.02mm
  • Bore: 5 to 12mm
  • Allowable Declination: 1∠°
  • Allowable Axial Deviation: ±0.60mm
  • Allowable Speed: 16000rpm
  • Static Torsional Stiffness: 65 Nm/rad
  • Moment of Inertia: 5.2 x 10-6 Nm
  • Bushing Material: 304 Stainless steel
  • Rubber Block Material: Polyurethane imported from Germany
  • Surface Treatment: Polished
  • Weight: 75g
  • Certificate: ISO9001, REACH, RoHS
  • Warranty: 12 Months

Jaw Coupling Dimension (unit: mm)

  • d1/d2 Inner Diameter Size: 4-5-6-6.35-7-8-9-10-11-12
  • ΦD: 25
  • L: 34
  • LF: 22.5
  • LP: 11.6
  • F: 5.6
  • M: M4
  • Tightening Torque: 3.5 Nm

Tips: Flexible jaw coupling structural features

  • Intermediate elastomer connection.
  • Can absorb vibration, compensate radial, angular and axial deviation.
  • Oil resistance and electrical insulation.
  • Clockwise and counterclockwise rotation characteristics are exactly the same.
  • Fixing with positioning screws.
