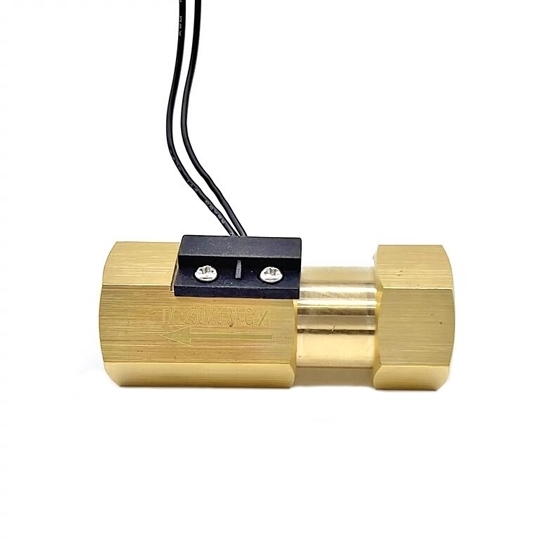

G3/4" Magnetic Water Flow Switch

0 reviews • Write a review

from

$77.39

Ex Tax: $77.39

Stock: In Stock
Model: RDDLZ-MR-4060
Weight: 1.00
SKU: RDDLZ-MR-4060

Available Options

Short Description

Thread

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This flow switch is not made of food grade material and is not recommended for use in drinking water.

Magnetic water flow switch is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.

Specification

Model	RDDLZ-SK
Thread	G1/4"	G3/8"	G1/2"	G3/4"
Max Operating Flow Rate (When 0.2Mpa)	18L/min	18L/min	20L/min	26L/min
Max Switch Voltage	AC/ DC 250V
Min Break Down Voltage	500VDC
Max Switch Current	AC 50mA/ DC 0.3A
Max Carry Current	2.5A
Max Contact Resistance	100mΩ
Min Insulation Resistance	10¹⁰Ω
Contact Life	10⁷Times
Operating Temperature	-1 ~ +85℃
Applicable Environment Temperature	-40 ~ +125℃
Min Flow Rate	≥1.5L/min	≥1.5L/min	≥1.5L/min	≥2.5L/min
Max Carry Pressure	1.8MPa

Note: ON when there is water, OFF when there is no water.

Dimension

Applications

Tips: Internal structure of magnetic water flow switch

A piston with a permanent magnet is arranged on the fluid channel inside the water flow switch housing. When the piston is pushed by the pressure difference caused by the fluid flow, the magnetic piston lead the sealing reed switch inside the device to operate. The diameter of the piston determines the starting flow rate. When the flow decreases, the stainless steel spring pushes the piston back into place. When the reed switch is actuated, it can transmit alarm or instruction remotely, or it can be integrated into the automatic control system. In addition, set the upper or lower limit for the flow switch, when the flow reaches the limit value, the flow switch will send a signal or alarm, and the system will run or stop. Flow switches are usually used in systems that require flow.
