Pedal Force Load Cell Sensor For Automotive, 1-200kg

0 reviews • Write a review

from

$212.35

Ex Tax: $212.35

Stock: In Stock
Model: RDDLZ-LC-TB002
Weight: 1.00
SKU: RDDLZ-LC-TB002

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

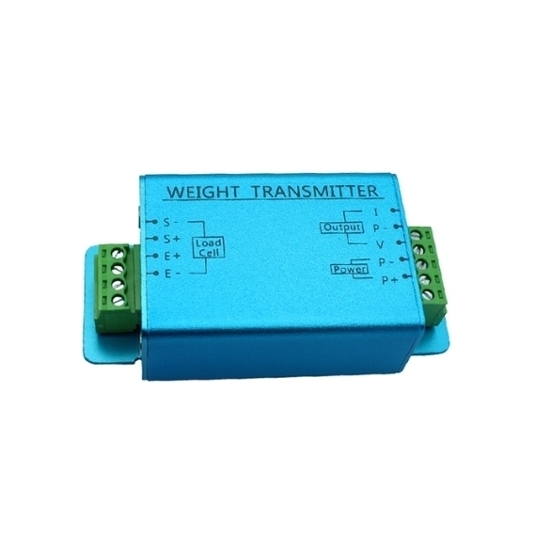

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

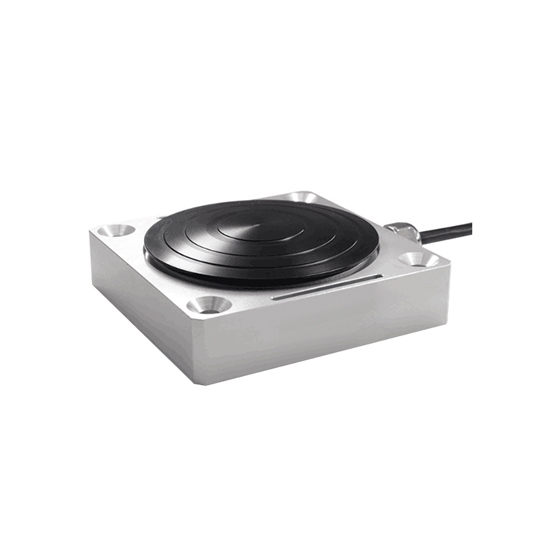

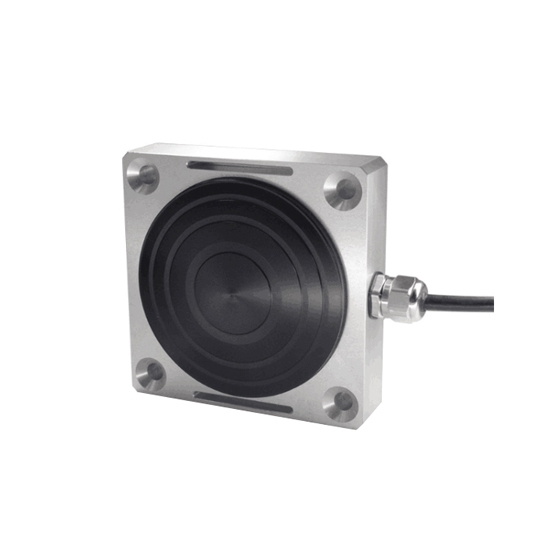

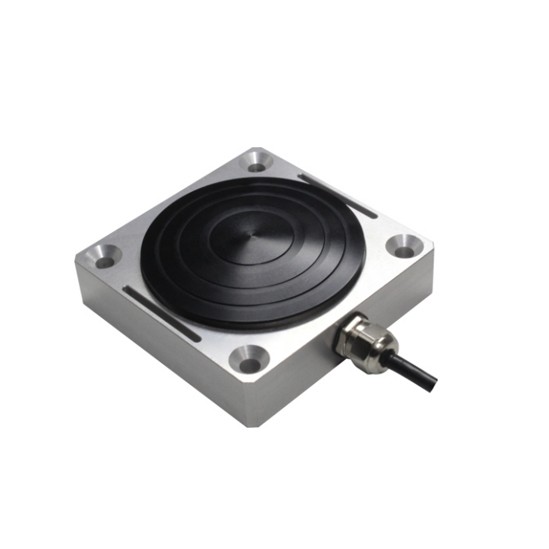

The pedal force load cell sensor offers a capacity range of 1-200kg, with optional ranges of 0-50kg and 0-100kg. It delivers a rated output of 1.0-1.5mV/V with a zero balance of ±2%F.S. This sensor is perfect for measuring pedal forces, brake force, and dynamic loads in automotive applications.

Specification

Model	RDDLZ-DYTB-002
Capacity	1-200kg (optional 0-50kg, 0-100kg, 0-200kg)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Rated Output	1.0-1.5mV/V
Zero Balance	±2%F.S.
Non-Linearity	0.3%F.S.
Hysteresis	0.3%F.S.
Repeatability	0.1%F.S.
Creep (30min)	0.05%F.S.
Temp Effect on Output	0.05%F.S./10°C
Temp Effect on Zero	0.3%F.S./10°C
Response Frequency	10kHz
Material	Alloy Steel/Stainless Steel/Aluminum Alloy
Impedance	700Ω
Insulation	≥5000MΩ/100VDC
Operating Voltage	5-10V
Operating Temperature Range	-20 to 70°C
Safe Overload	150%
Maximum Overload	200%
Cable Specifications	Φ3×2m
Cable Ultimate Pull	10kg
TEDS	Optional (Contact customer service)

Feature

Wide Measurement Range: Pedal force load cell sensor supports a measurement range of 0 to 200kg, suitable for various automotive applications.
High Precision: Ensures stable and accurate measurements with minimal lateral interference, making it highly reliable for testing.
Compact and Robust Design: Pedal force load cell has a low-profile structure that is easy to install and designed for high stability and durability.
Advanced Material: Made from lightweight aluminum alloy with excellent casting and machining properties, combining strength and versatility.
Specialized for Automotive Testing: Ideal for measuring pedal forces in vehicles, brake force, and dynamic load testing in automotive inspection systems.
Flexible Installation: Equipped with a fan-shaped structure for easy and adaptable mounting on vehicle pedals or other surfaces.
Broad Application Scope: Pedal load cell widely used in automotive pedal force testing, automation assembly lines, and other automated devices or testing fields.
Anti-Interference Design: Built to resist lateral forces and vibrations, ensuring consistent performance even in dynamic environments.

Dimension (unit: mm)

Wiring Method

Application

Tips: What are the key applications of pedal force load cell sensor in the automotive industry?

This load cell sensor is specifically designed for automotive applications. It is widely used in measuring pedal forces in vehicles to ensure compliance with safety and performance standards. The sensor is also ideal for brake force testing, helping to evaluate the effectiveness of braking systems under various conditions. In addition, it plays a critical role in dynamic load testing within automotive inspection systems, providing real-time data for performance analysis and quality assurance.
