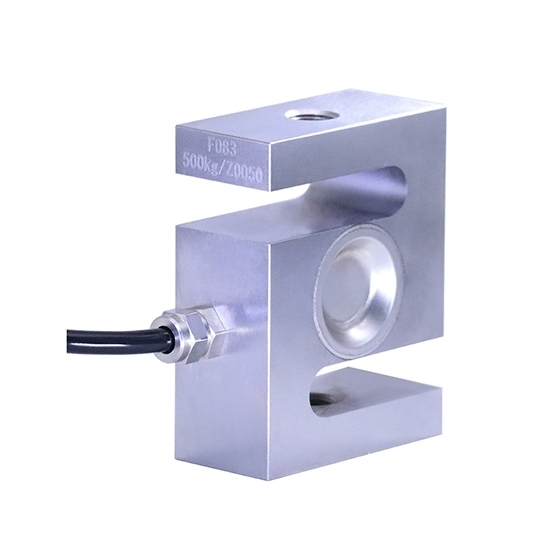

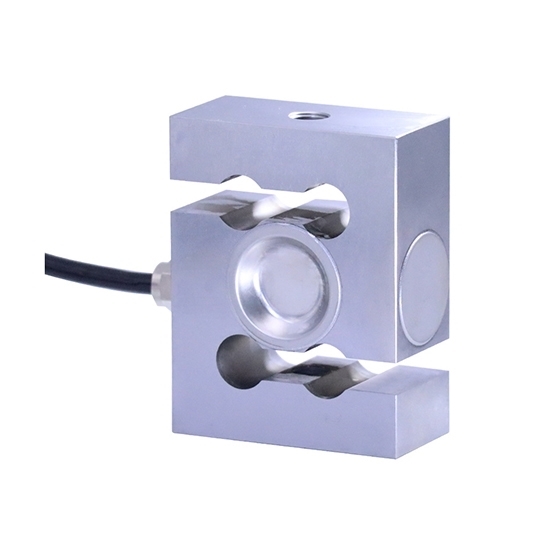

S Type Load Cell For Tension And Compression, Stainless Steel, 200kg-5 Ton

0 reviews • Write a review

from

$153.96

Ex Tax: $153.96

Stock: In Stock
Model: RDDLZ-LC-TSH
Weight: 1.00
SKU: RDDLZ-LC-TSH

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

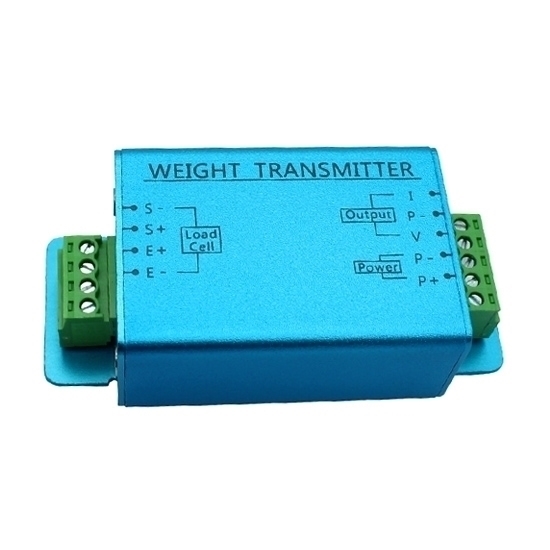

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Good price S type load cell for tension and compression with high accuracy, repeatability and temperature sensitivity, with range 200kg/300kg/500kg/1 ton/2 ton/3 ton, operating voltage range 5-15V, high quality stainless steel for long term stability and extreme overload of 200%. Ideal for industrial and commercial use, this load cell is designed to withstand operating temperatures from -20°C to 80°C.

Specification

Model	RDDLZ-DYTSH
Capacity	200kg/300kg/500kg/1 ton/2 ton/3 ton (optional)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Output Sensitivity	2.0~3.0 ±10% mV/V
Zero Output	±1%F.S.
Non-linearity	0.03 %F.S.
Hysteresis	0.03 %F.S.
Repeatability	0.03 %F.S.
Creep	0.05 %F.S. (30 min)
Temperature Sensitivity Drift	0.03 %F.S./10°C
Zero Temperature Drift	0.05 %F.S./10°C
Response Frequency	1k Hz
Material	Stainless steel
Resistance	350 Ω
Insulation Resistance	≥5000 MΩ/100V DC
Operating Voltage	5~15 V
Operating Temperature Range	-20°C~80°C
Safety Overload	150 %R.C.
Limit Overload	200 %R.C.
Cable Wire Specification	φ5*6m
Ultimate Cable Pull	98 N

Dimension (unit: mm)

Capacity	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
200kg-1 ton	M10*1	62	80	32.5	30
2 ton	M16*1.5	71	90	40	45
3 ton	M18*1.5	80	100	41.5	50
5 ton	M20*2	92	130	57.5	58

Force Diagram

Application

Tips: What is the working principle of S-type load cell?

The s type load cell is based on the strain gauge measurement principle. When an external force is applied, the elastomer inside the load cell undergoes a slight deformation, and the strain gauges affixed to it are then stretched or compressed, resulting in a change in resistance. This change in resistance is converted into an electrical signal through a Wheatstone bridge and processed by an amplifier circuit and data acquisition system, ultimately outputting weight data proportional to the load.
