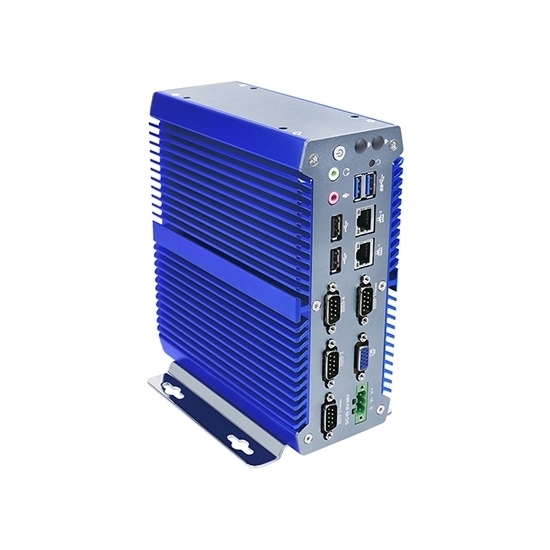

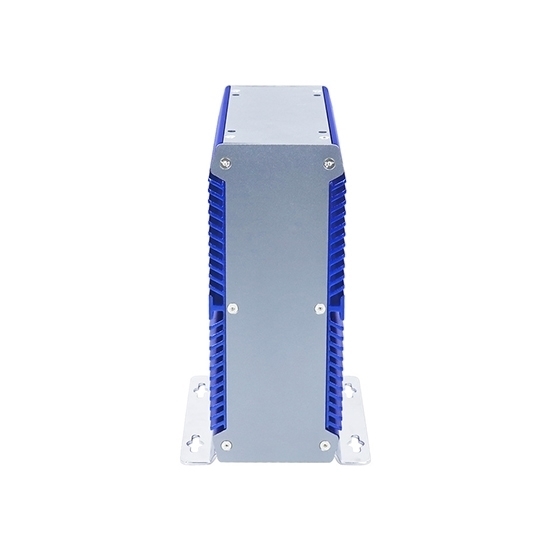

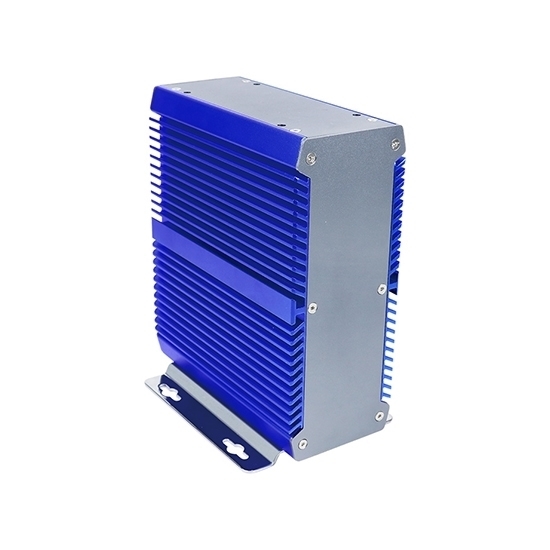

Fanless Industrial PC, Core I5 I7, Linux/Win 7/Win 10

0 reviews • Write a review

from

$729.85

Ex Tax: $729.85

Stock: In Stock
Model: RDDLZ-IPC-Ci5i7LW
Weight: 1.00
SKU: RDDLZ-IPC-Ci5i7LW

Available Options

Usable System

CPU

RAM/ Hard Disk Capacity

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hot sell fanless industrial PC. Optional CPU Intel Celeron 3865U/ Core i5 7200U/ i7 7500U, system Linux/Windows 7/Windows 10, standard interface 2 Intel 1000M LAN, 4 COM. Embedded industrial grade computer not only for industrial automation, but also medical, logistics transportation, warehouse, electronic education, machine, etc.

Specification

Model	RDDLZ-IBOX-700 Plus
CPU	Core i5 7200U (Dual Core Quad Threads, 3MB L3 Cache, 2.5 GHz, Max Turbo Frequency 3.1 GHz)
	Core i7 7500U (Dual Core Quad Threads, 4MB L3 Cache, 2.7 GHz, Max Turbo Frequency 3.5 GHz)
	Intel Celeron 3865U (Dual Core Dual Threads, 2MB L3 Cache, 1.8 GHz)
CPU Framework	KabyLake-U
Usable System	Linux, Windows 7, Windows 10
RAM	1*DDR4 1866/2133 SODIMM, Max. 16GB
BIOS	AMI EFI BIOS
Display Chip	Intel HD Graphics 610/620
Display Port	1VGA, 1HDMI PIN (Support synchronous and asynchronous double display)

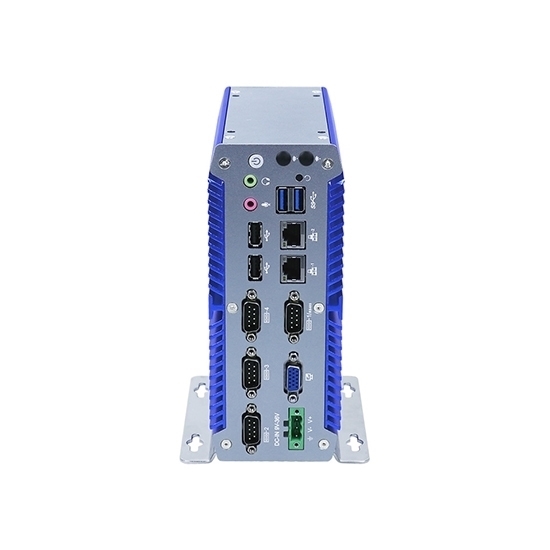

Back Panel I/O	2*USB 3.0
	2*USB 2.0
	1*Power Switch
	2*Intel Gigabit LAN
	1*VGA
	1*3P phoenix terminal for power
	1*RST key
	1*Mic
	1*Line Out
	4COM (Max. 6COM, COM1 and COM2 can set RS232/422/485)
Expansion Port	1MINI PCIE (WIFI/3G/4G), 1SIM card slot 1MINI PCIE (support MSATA) 2USB 2.0 Built-in Optional Ports (Standard PC does not has this interface): GPIO, PS/2, audio interface, HDMI
Network	2*Intel i211-AT 10/100/1000M LAN
Storage	1SATA3.0, 1MSATA
Input Voltage	DC 9V～36V wide voltage Input, support positive pole and negative electrode connect reversely protection
Other Function	Electricity boot, time-on, wake-on-LAN, PXE boot, watchdog (0-255 level)
Working Temperature	0 ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD), Surface air flow
Working Humidity	5%~95% non-condensing
Certification	CE, CCC, FCC Class A, ROHS
Color	Blue + Grey (Any color can be customized)
Material	High-quality all aluminum, surface anodic oxidation
Dimension	185 * 160 * 74 mm (Not include the brackets)
Net Weight	2.2 kg (Not include the brackets)

Fanless Industrial PC Dimensions Diagram (Unit: mm)

Accessories List

Name	Quantity	Specification
Power Adapter	1	DC 12V, 5A
Power Cord	1	Any Plug Optional (US, EU, UK etc.)
Bracket	2	Standard
Motherboard CD	1	Neutral

Tips: The difference between industrial PC and PLC.

An industrial PC is a computer used for industrial control. Its anti-interference performance is better than ordinary computers. It is anti-drop, anti-vibration and strong in stability. PLC is a programmable controller, which is generally installed in a control cabinet. It has input and output points, and can also collect analog signals for communication. Simply put, for industrial PC and PLC, the former is the upper computer and the latter is the lower computer.

The difference in hardware structure. Both industrial and PLC are composed of central processing unit (CPU), memory, input and output devices, etc. PLC is a dedicated calculator, but it has a different bus architecture from industrial PC.
The difference in cost performance. Both Industrial PC and PLC have the characteristics of high performance, high integration, modularization, mass production and wide application. When there are no more complicated data processing, graphic display or motion trajectory requirements in the designed control system, the PLC can be used to obtain a better cost performance.
The difference in peripheral configuration. Compared with PLC, industrial PC has more abundant peripheral equipment, such as monitor, driver, printer and network interface card, etc., and they are all standard components. As long as it is equipped with the corresponding driver software, the peripherals produced by different manufacturers can also be used in common with each other. However, PLC peripherals have fewer types and strong specificity, and peripherals of different brands cannot be used universally.
