- Stock: In Stock
- Model: RDDLZ-PP-MPP20
- Weight: 1.00
- SKU: RDDLZ-PP-MPP20

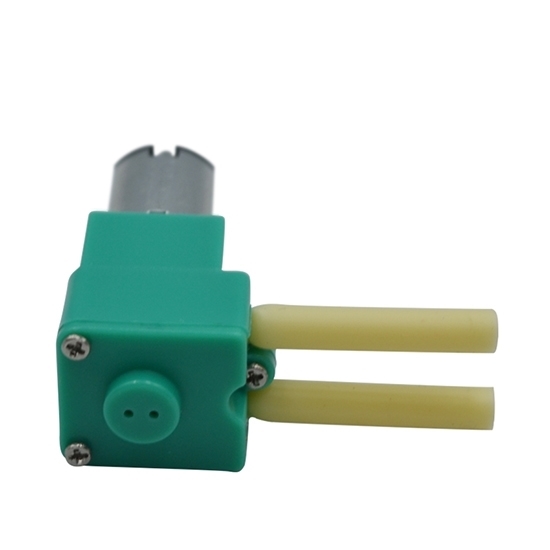

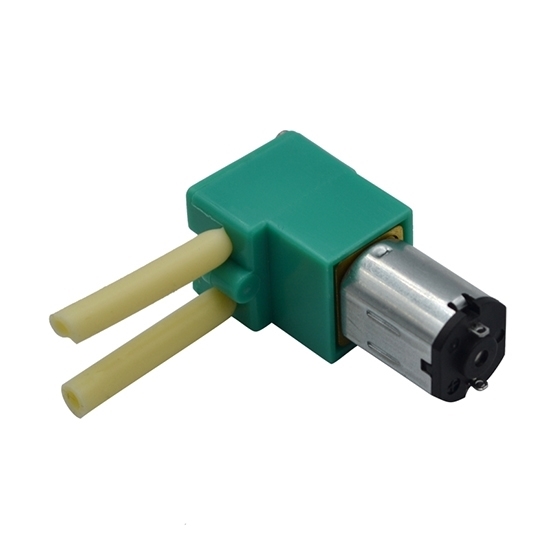

Micro peristaltic dosing pump for sale, rated voltage DC 3V/3.7V/5V/6V, flow rate 1~4mL/min (1.52 gallon per day), 2 transmission hoses, inner diameter 1.8mm. Miniature peristaltic metering pump for medical/laboratory/home use, which can transport medium such as weak acid, weak base, clean water, oil, etc.
Specification
| Model | RDDLZ-PP-MPP20 | |
| Water Flow Rate | mL/min | 1~4 |
| GPD (gallon/day) | 0.38~1.52 | |
| Rated Voltage | DC 3V, 3.7V, 5V, 6V | |
| Power | ＜0.5W | |
| Tubing Size | Outer Diameter | 3.5mm |
| Inner Diameter | 1.8mm | |
| Overall Size | 15*19*38mm | |
| Weight | 14g | |
| Rated Life | ＞300h | |

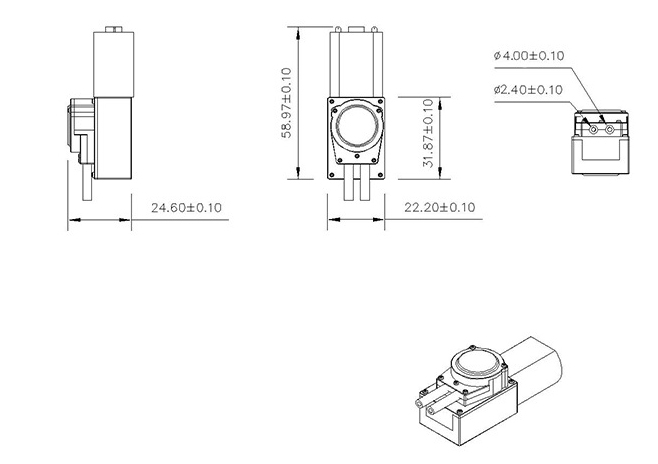

4mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

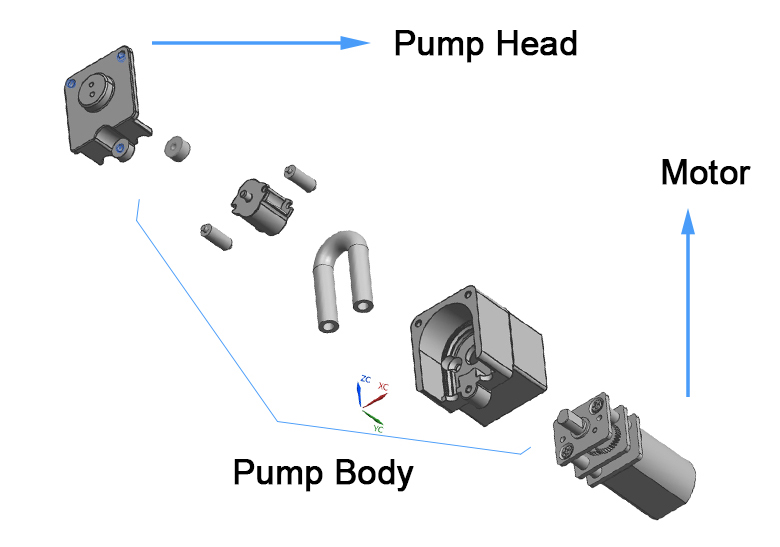

4mL/min Micro Peristaltic Pump Structure Diagram
Micro Peristaltic Pump Applications
Tips: Daily maintenance for micro peristaltic pump.
In the daily use of micro peristaltic pump, it is recommended to replace the hose after long-term use. This will not easily cause the silicone tube to rupture, otherwise the liquid will easily seep from tubing and flow into the roller of pump head. If corrosive liquid flows into the gap of roller, pump head should be disassembled and cleaned in time to prevent it from solidifying in the gap of roller after weathering, causing the pump head to block.
Micro peristaltic pump tubing should be replaced in time according to the specific frequency of use, or the position should be moved frequently. If the liquid is highly corrosive, please choose a hose of the corresponding material to avoid damage to the micro peristaltic pump.
