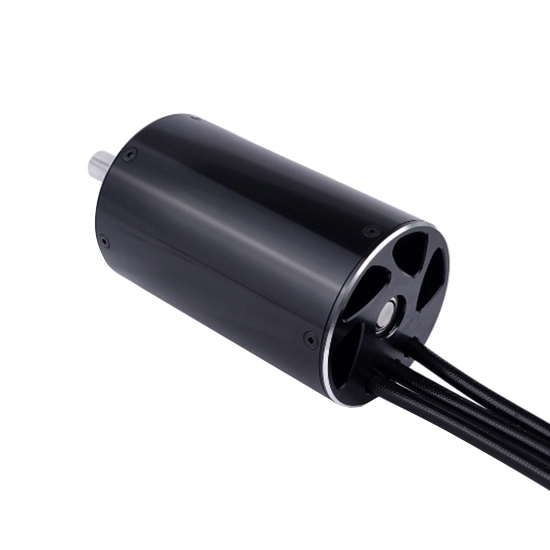

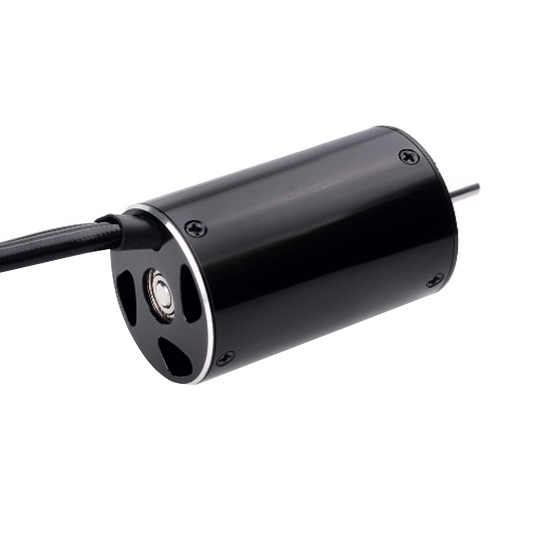

Buy a 700KV brushless motor online which is designed for RC boats. A waterproof brushless motor has 42V Max voltage, 7530W Max power and 175A Max amps. Powerful 700KV brushless motor is made of high-quality aluminum alloy with the latest CNC milling machines and designed with high power to provide a longer run time for RC boat.

Specifications

Model: RDDLZ-SP-056112-10
Rotational Speed: 700KV
Maximum Current: 175A
Maximum Voltage: 42V
Maximum Power: 7350W

Length: 112mm
Diameter: 56mm
Winding Type: DELTA
Number of Turns: 4D
No-load Current: 2.2A

Max Seed: 30000KV
Number of Rotor Stages: 4
Shaft: 10mm
Weight: 1040g

Features

700KV brushless motor has a 4-stage 12-slot high-torque motor design.
CNC machined billet, 6061-T6 aluminum heat sink.
High-purity copper coil for maximum performance.
High-speed ABEC5 oversized bearings.
Highly balanced rotor, high smoothness, accuracy and high speed.
Ultra-thin (0.2mm) stator blades.
Removable/replaceable rotor.
Precision design for maximum energy conversion.

Dimension (Unit: mm)

Detail

Tips: Do you need to break in a brushless RC motor?

No need to break in a brushless motor. Brushed motors people used to break them in to get the comm brushes to match up with the commutator and also to break in bushings if the motor didn't have bearings. Again, nothing is needed except for oil in the bearings for a brushless motor.
