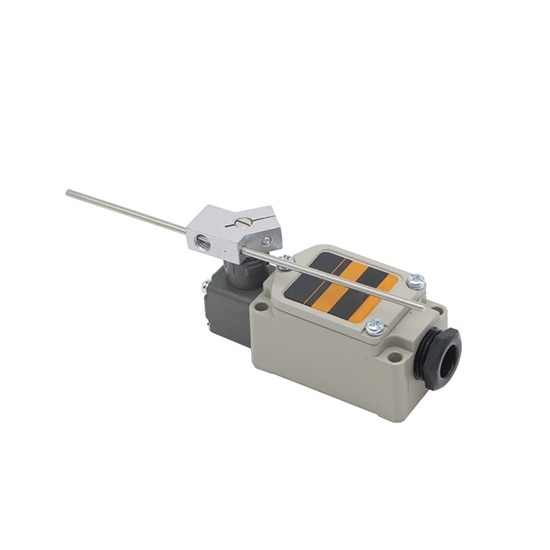

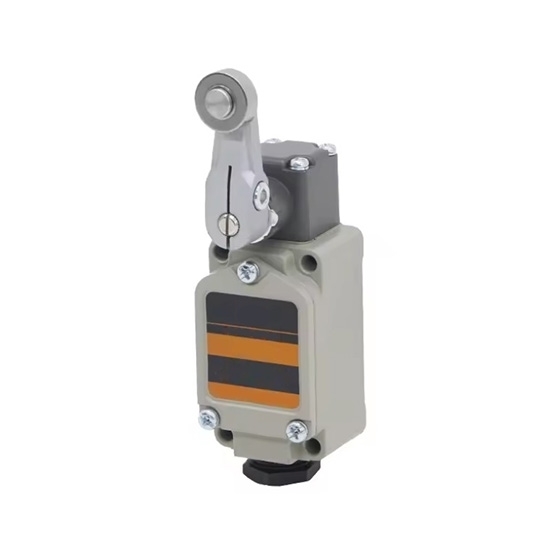

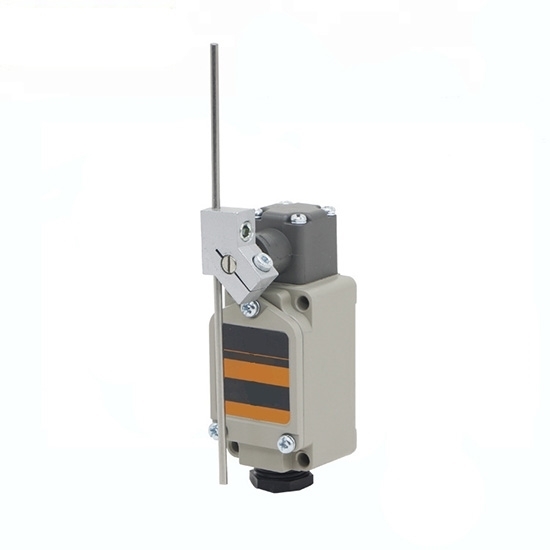

Compact limit switch is widely used in mechanical equipment, automation systems, and industrial machinery for precise control of motion position and safety monitoring. It is suitable for a variety of industrial environments with temperatures ranging from -10°C to +80°C and humidity ranging from 35% to 95%RH.

Features

• Its double circuit switch is widely employed across various industries.
• Mini limit switch boasts high mechanical strength due to its aluminate alloy casing.
• Its design features dustproof, waterproof, and oilproof capabilities.
• Compact limit switch offers a selection of actuators suitable for diverse environmental conditions.
• Miniature limit switch finds extensive application in machine tool equipment, plastic injection machines, and other industrial machinery.

Specification

Actuator Operating Characteristic

OF: Operating Force
RF: Release Force
PT: Pre-Travel
OT: Over Travel
MD: Movement Differential

Mounting Holes Dimensions (mm)

Actuators

Tips: Applications of mini limit switches

1. Automated production lines: Used to detect and control the position and movement of machinery, ensuring accuracy and efficiency in manufacturing processes.
2. Robotic arms and robots: Serve as safety switches and position detectors, ensuring precise positioning and safety during operations.
3. Conveyor systems: Used to detect the position of conveyors or the arrival of objects, triggering operations or stops as needed.
4. Access control and safety systems: Used as safety switches to ensure that doors or valves operate safely when in specific positions.
5. Electrical equipment and control panels: Used to control the start, stop, or position of electrical equipment, ensuring the proper operation of circuits and safety.
6. Automation equipment and mechanical systems: Serve as critical position sensors and safety switches, ensuring that equipment operates in designated positions and states to prevent damage or accidents.
