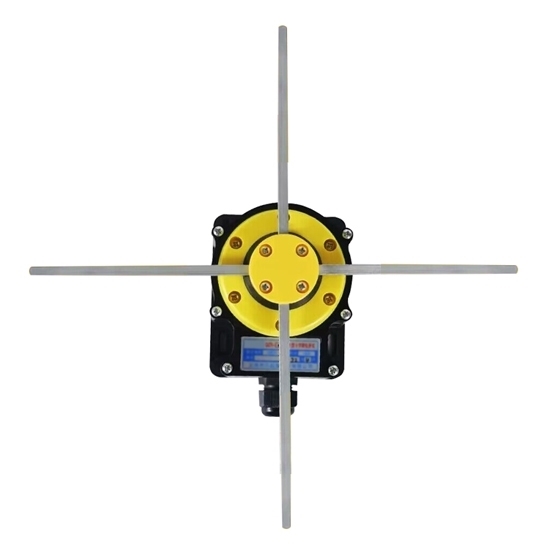

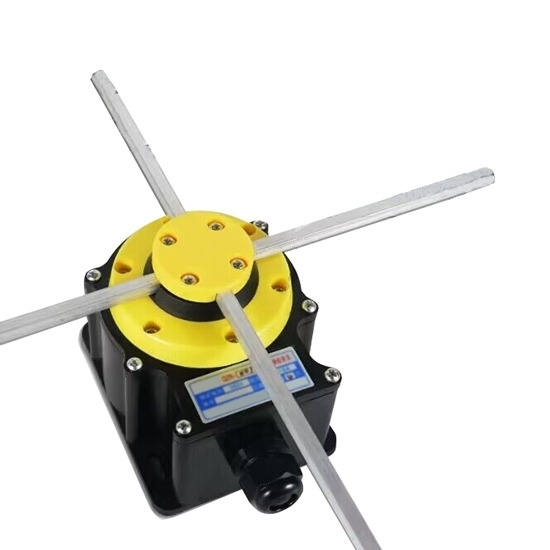

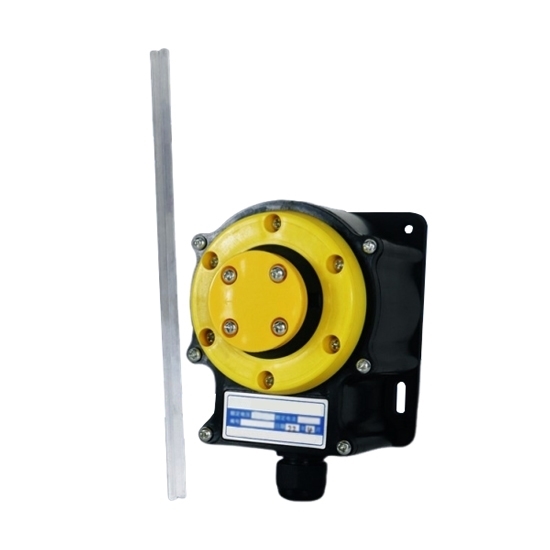

Cross Rotary Limit Switch, 380V 16A, IP65, 180°/360°

0 reviews • Write a review

from

$102.89

Ex Tax: $102.89

Stock: In Stock
Model: RDDLZ-LS-QZR
Weight: 1.00
SKU: RDDLZ-LS-QZR

Available Options

Gear Level

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cross rotary limit switch for sale, with rated current of 16A, rated voltage of 380V. Single speed 180° and double speed 360° are available. Used in cranes and can be used in CNC lathes, marine facilities, medical equipment, industrial towers.

Features

Cross rotary limit switch operates smoothly and is dustproof, waterproof and oilproof.
The housing of the limit switch is made of precision die-cast aluminum alloy, which is strong and durable.
Its contacts adopt a double-gap positive opening design to provide higher reliability and safety.
Its housing has a high protection level and good sealing, which can prevent dust, water and condensation.
Industrial limit switch is widely used in corporate equipment, medical equipment, instrumentation, CNC machine tools, marine equipment, industrial equipment, machine tools, textiles, light industry and power industries.

Specification

Model	RDDLZ-QZR-001/RDDLZ-QZR-006
Rated Current	16A
Rated Voltage	380V
Material	Metal hardware, engineering plastic shell
Waterproof Rating	IP65
Angle of Rotation (Optional)	Single speed 180°/Dual speed 360°

Dimension (Unit: mm)

Applications

Tips: What is a cross rotary limit switch?

The cross rotary limit switch is a position-detecting electrical switch featuring a cross-shaped rotary actuator. It can be triggered from multiple directions as moving parts make contact with any of the actuator's arms, causing it to rotate and activate internal contacts. Compared to traditional linear limit switches, it offers multi-directional sensing for more versatile and reliable limit control. This type of limit switch is widely used in industrial automation, cranes, conveyor systems, and other machinery to detect travel endpoints, control stopping positions, or prevent over-travel.

What should I do if the switch is not working properly?

If the switch is not functioning correctly, check for loose connections, incorrect wiring, or signs of damage.
