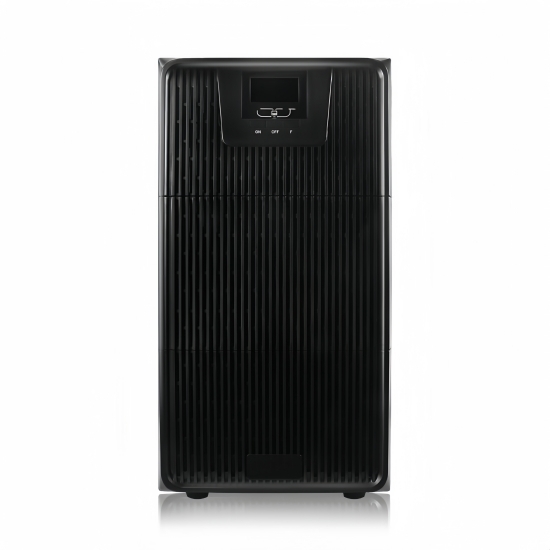

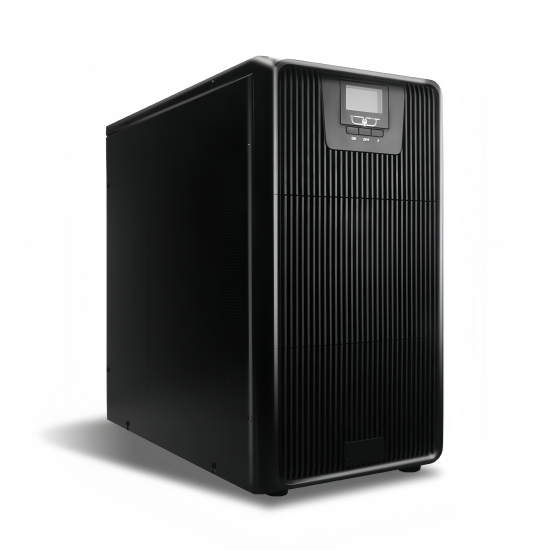

6000VA 120V/220V UPS Backup Uninterruptible Power Supply

0 reviews • Write a review

from

$2,077.69

Ex Tax: $2,077.69

Stock: In Stock
Model: RDDLZ-UPS-6K
Weight: 1.00
SKU: RDDLZ-UPS-6K

Available Options

Battery

Input & Output Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Applications

6000VA/4800 Watts high-performance UPS with battery backup provides an uninterruptible power source for the loaded equipment or devices with optional input and output voltages of 220V/120V AC, and the UPS power supply is widely used for personal computers, office equipment, test equipment, light system, safe alarm system, ray equipment, medical equipment, copy machine, numerical control machine tools, industrial automation equipment, color and drying equipment, Hi-Fi equipment, etc.

6kVA UPS Specification

Basics	Model	RDDLZ-BE-6K
	Rated Capacity	6000VA/4800W
	Phase	Single Phase (L, N, G) * NOT support the split phase (L1, L2 + G) like USA standard.
	Weight (kgs)	12
	Dimensions (mm)	369×190×318
Input	Nominal Voltage	208/220/230/240VAC
	Input Voltage Range	110-300 VAC (Based on load at 50%), 176-300 VAC (Based on load at 100%)
	Frequency Range	46-54 Hz or 56-64 Hz
	Power Factor	≥0.99 @ Nominal Voltage (100% load)
Output	Output Voltage	208/220/230/240VAC
	Voltage Regulation	±1%
	Frequency Range (Synchronized Range)	46-54 Hz or 56-64 Hz
	Current Crest Ratio	50 Hz or 60 Hz ±0.1Hz
	Harmonic Distortion	≤3% THD (Linear Load), ≤5% THD (Non-linear Load)
	Transfer Time	Zero
	Waveform (Batt. Mode)	Pure Sinewave
Efficiency	AC Mode	92%
Efficiency	Battery Mode	90%
Battery	Battery Type	Depending on the capacity of external batteries
	Numbers	16 - 20 (Adjustable)
	Charging Current (Max.)	1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries)
	Charging Voltage	273 VDC 土1% (Based on 20pcs batteries)
Indicators	LCD	Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
Alarm	Battery Mode	Sounding every 4 seconds
	Low Battery	Sounding every second
	Overload	Sounding twice every second
	Fault	Continuously sounding
Environment	Humidity	0-95% RH @ 0-50°C (non-condensing)
Environment	Noise Level	Less than 55dB @ 1 Meter
Management	Smart RS-232/USB	Supports Windows^® 2000/2003/XP/Vista/2008, Windows^® 7/8/10, Linux and MAC
Management	Optional SNMP	Power management from SNMP manager and web browser

Note:

1. The UPS input/output configuration is 1-phase (L, N, G) like Europe standard, NOT support the split phase (L1, L2 + G) like USA standard.

2. Batteries that work with this UPS are not included, customers need to match lead-acid battery packs on their own, consult us for battery specifications.

3. If you need other output voltage range, please contact us.

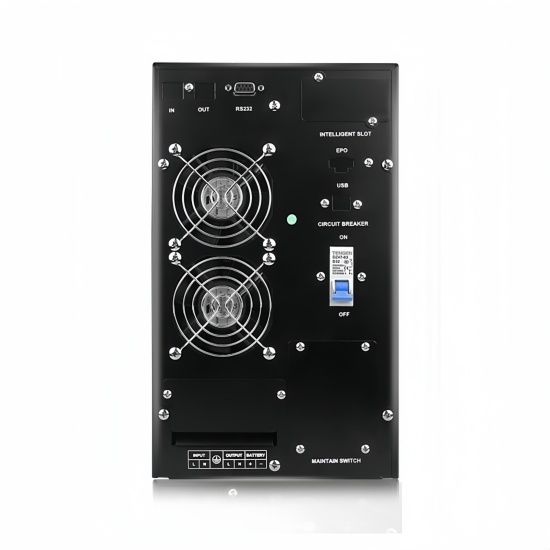

Rear Panel Diagram

External battery connector
RS-232 communication port
Intelligent slot
USB communication
Emergency power off function connector (EPO connector)
Cooling fan
Input circuit breaker
Input/ Output terminal (Refer to Diagrams 3 and 6 for the details)

Tips: UPS troubleshooting - there is no display on the panel and the UPS does not work after the starting up.

Judging from the phenomenon, it is the fault of the electric power supply input, battery, and electric supply detection and battery voltage detection circuit.

1. Check whether the electric power supply input fuse is burned out.

2. Check whether the UPS battery fuse is burned out and whether the electric supply input fuse is OK. Because the UPS output and display will be shut down when some UPS cannot detect battery voltage.

3. Check whether the electric supply detecting circuit is working normally and if the UPS battery fuse is OK. If it doesn’t work normally and UPS doesn’t have a starting-up function without an electric supply, UPS output and display will be shut down. If the electric supply detecting circuit is working normally, please check whether the UPS battery voltage-detecting circuit is normal.
