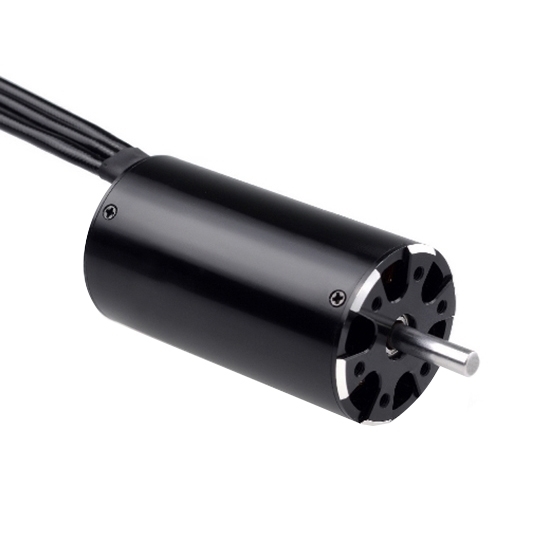

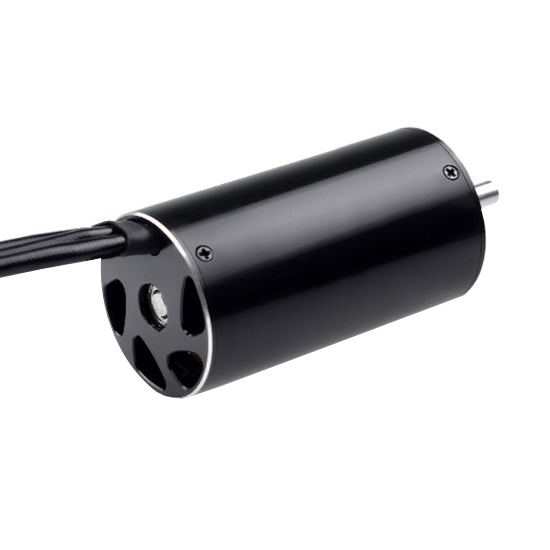

1200KV Brushless RC Boat Motor

0 reviews • Write a review

from

$142.87

Ex Tax: $142.87

Stock: In Stock
Model: RDDLZ-RB-1200
Weight: 1.00
SKU: RDDLZ-RB-1200

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Waterproof 1200KV brushless RC boat motor with Max. speed 60000KV, 4-stage 12-slot high-torque motor design, RC boat brushless motor's excellent torque ensures long operation.

Specifications

Model: RDDLZ-RB-3670
Rotational Speed: 1200KV
Maximum Current: 45A
Maximum Voltage: 36V
Maximum Power: 1600W
Length: 70mm
Diameter: 36mm
Winding Method: WYE
Number of Turns: 4Y
No-load Current: 1.2A
Max Speed: 60000KV
Shaft: 5mm
Number of Rotor Stages: 4
Weight: 275g

Features

4-stage 12-slot high-torque motor design.
CNC machined billet, 6061-T6 aluminum heat sink.
High-purity copper coil for maximum performance.
High-speed ABEC5 oversized bearings.
Highly balanced rotor, high smoothness, accuracy and high speed.
Ultra-thin (0.2mm) stator blades.
Removable/replaceable rotor.
Precision design for maximum energy conversion.

Dimension (Unit: mm)

Detail

Tips: Do brushless RC motors wear out?

Since brushless DC motors have no brushes to get worn out, they represent a huge leap forward in technology. Brushless motors have significantly higher efficiency and performance and lower susceptibility to mechanical wear than their brushed counterparts.
