1300KV Brushless RC Boat Motor

0 reviews • Write a review

from

$181.79

Ex Tax: $181.79

Stock: In Stock
Model: RDDLZ-RB-1300
Weight: 1.00
SKU: RDDLZ-RB-1300

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

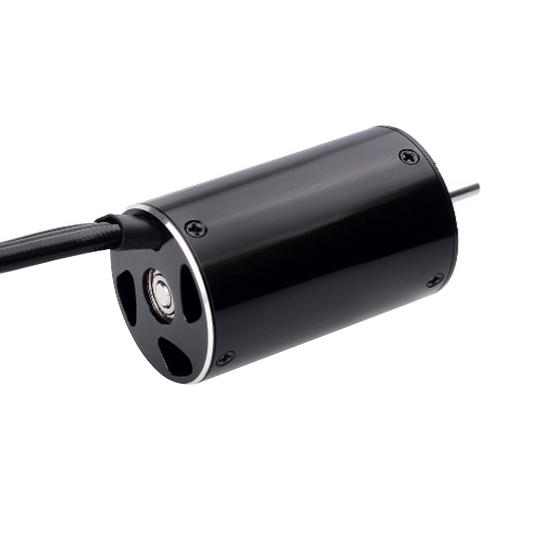

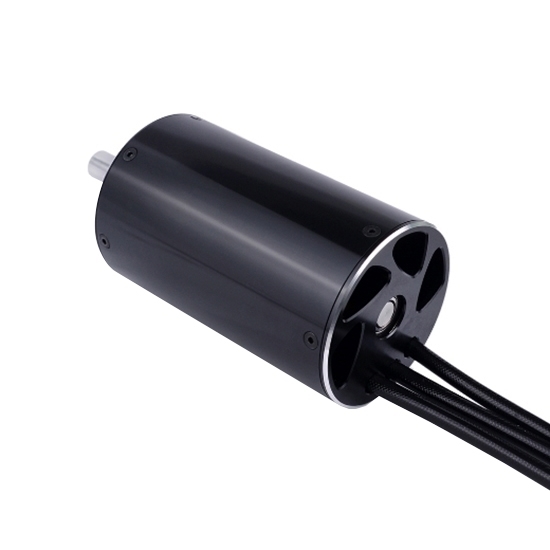

Powerful 1300KV brushless motor with 22V Max voltage, 4200W Max power and 193A Max current and Max. speed 30000KV. Waterproof 1200KV brushless RC boat motor with precision design for maximum energy conversion.

Specifications

Model: RDDLZ-SP-056820-10
Rotational Speed: 1300KV
Maximum Current: 193A
Maximum Voltage: 22V
Maximum Power: 4200W

Length: 82mm
Diameter: 56mm
Winding Type: WYE
Number of Turns: 2Y
No-load Current: 3.1A

Max Speed: 30000KV
Shaft: 8mm
Number of Rotor Stages: 4
Weight: 800g

Features

1300KV brushless motor has a 4-stage 12-slot high-torque motor design.
CNC machined billet, 6061-T6 aluminum heat sink.
High-purity copper coil for maximum performance.
High-speed ABEC5 oversized bearings.
Highly balanced rotor, high smoothness, accuracy and high speed.
Ultra-thin (0.2mm) stator blades.
Removable/replaceable rotor.
Precision design for maximum energy conversion.

Dimension (Unit: mm)

Details

Tips: How does an RC boat work?

The drive system of a typical RC boat is very simple. An electric motor near the front of the boat is connected to a shaft that runs towards the back of the boat and out through the bottom of the hull. This shaft is contained within a tube, called a stuffing tube, which is filled with grease.
