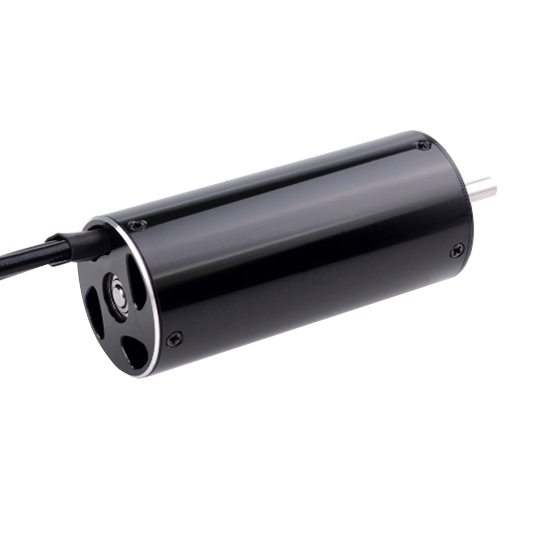

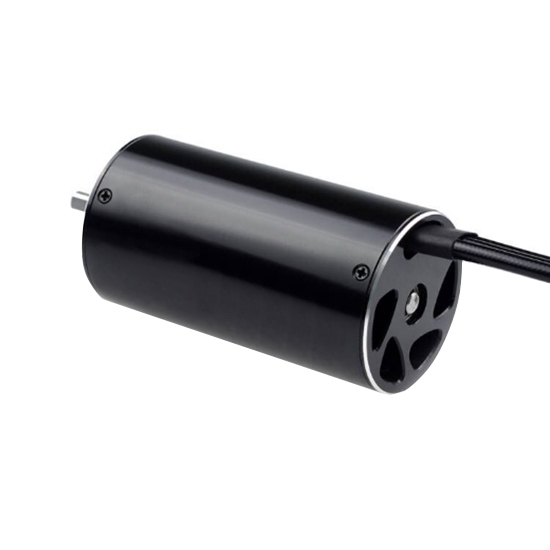

4000KV Brushless RC Boat Motor

0 reviews • Write a review

from

$132.86

Ex Tax: $132.86

Stock: In Stock
Model: RDDLZ-RB-4000
Weight: 1.00
SKU: RDDLZ-RB-4000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap price brushless waterproof motor with a speed of 4000KV, maximum current 120A, length*diameter 68mm*29mm, brushless motor has significantly higher efficiency and performance and is ideal for RC boats.

Specifications

Model: RDDLZ-RB-2968
Rotational Speed: 4000KV
Maximum Current: 120A
Maximum Voltage: 15V
Maximum Power: 1800W
Length: 68mm
Diameter: 29mm
Winding Method: DELTA
Number of Turns: 2.5T
No-load Current: 2.9A
Max Seed: 60000KV
Shaft: 4mm
Number of Rotor Stages: 4
Weight: 185g

Features

4-stage 12-slot high-torque motor design
CNC machined billet, 6061-T6 aluminum heat sink
High-purity copper coil for maximum performance
High-speed ABEC5 oversized bearings
Highly balanced rotor, high smoothness, accuracy and high speed
Ultra-thin (0.2mm) stator blades
Removable/replaceable rotor
Precision design for maximum energy conversion

Dimension (Unit: mm)

Detail

Tips: How to choose the size of an RC boat motor?

28-29mm can size- will power most hulls up to 600mm.
36mm can size- up to around 800mm.
40mm can size- up to 1200mm as long as it's a light brushless dedicated or abs hull.
Anything over that will require a56– 58mm motor.
