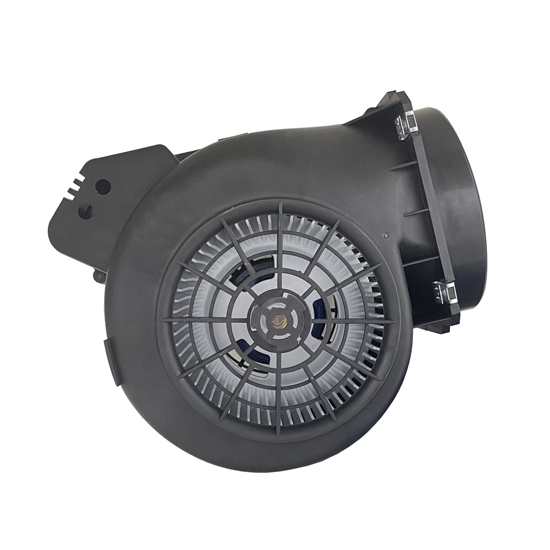

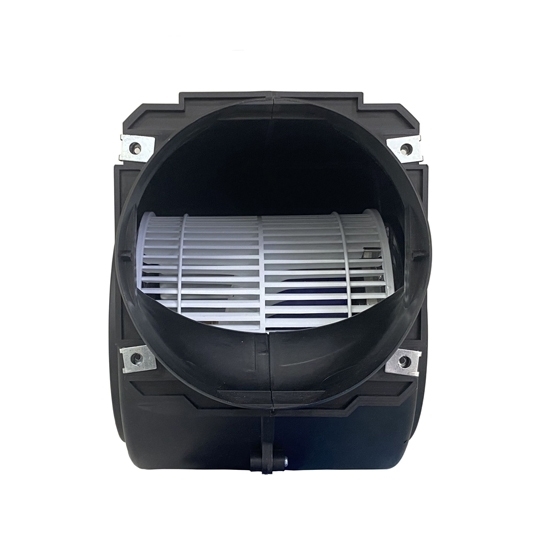

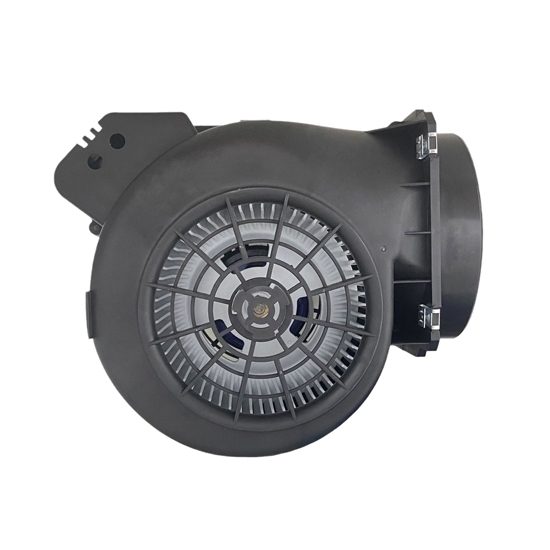

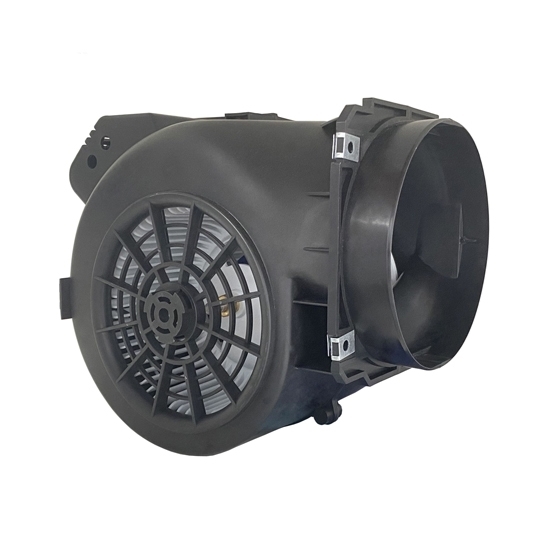

EC Double Inlet Centrifugal Fan, 146mm, 230V

0 reviews • Write a review

from

$465.59

Ex Tax: $465.59

Stock: In Stock
Model: RDDLZ-DICF-EC146
Weight: 1.00
SKU: RDDLZ-DICF-EC146

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

146mm EC (electronically commutated) double inlet centrifugal fan is a high-efficiency fan designed for ventilation and air conditioning systems. It features an electronically commutated motor that combines the benefits of AC and DC motors, ensuring optimal energy efficiency and precise speed control.

Specification

Model	RDDLZ-DL-F146B-EC-V2
Operating Voltage	230V AC
Frequency	50Hz/60Hz
Max. Power	115W
Motor Power	115W
Max. Current	0.85A
Noise	66dB(A)
Speed	2000rpm
Impeller Diameter	146mm
Air Volume	730m³/h (430 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	PA6+GF
Turbo Material	PA6+GF
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protection, Soft Start Protection, Stall Protection
Performance	Low Noise Fan
Protection Level	IP55
Insulation Level	B
Certificate	CCC, RoHS

Dimension (Unit: mm)

Performance Curve

Wiring

Tips: What is a double inlet centrifugal fan?

A double inlet centrifugal fan is a type of fan that uses two inlets to draw air into the fan casing. This design improves airflow efficiency and increases the fan's capacity compared to single inlet models. In a double inlet centrifugal fan, air enters the fan from both sides of the impeller, which is located centrally within the casing. As the impeller spins, it accelerates the air outward and directs it through a volute or diffuser, which converts the kinetic energy into static pressure and directs the airflow out of the fan outlet. This configuration provides higher airflow rates and more balanced air distribution, making it suitable for applications requiring substantial air movement, such as in HVAC systems, industrial ventilation, and large-scale cooling systems. The double inlet design helps reduce noise and improve overall performance in demanding environments.
