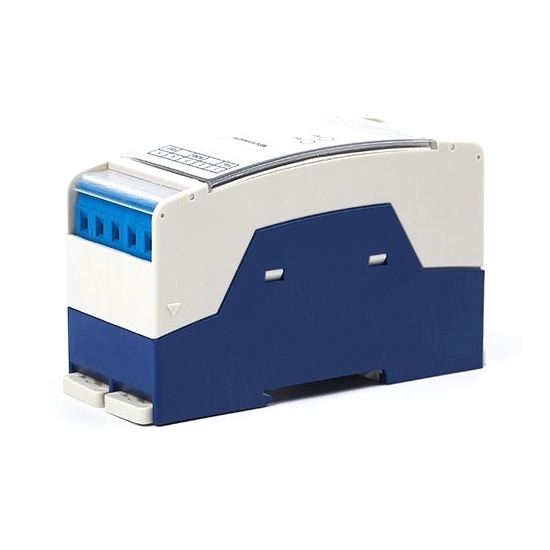

DC Voltage Sensor, Range 100mV To 70V, Power Supply DC 12V/24V

0 reviews • Write a review

from

$171.43

Ex Tax: $171.43

Stock: In Stock
Model: RDDLZ-VOS-DC70
Weight: 1.00
SKU: RDDLZ-VOS-DC70

Available Options

Short Description

Power Supply

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This SKU RDDLZ-VOS-DC70 is out of stock.
We recommend you another isolated DC voltage sensor RDDLZ-VOS-DC1000, which has measuring range from DC 10mV, 50mV, 75mV, 5V, 75V, 150V, 300V, 500V to 1000V.

DC voltage sensor has measuring range of 100mV/1V/10V/50V to 70V.

Specification:

Model	RDDLZ-WBV144H21-AS
Shipping weight	1kg
Measuring range of input voltage *	DC 0-100mV ~ 0-70V
Short-time overload	2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
Linear measurement range	0% ~ 120% measuring range
Input impedance	When Ux＞1V, Ri=Ux*10kΩ/V; when Ux≤1V, Ri≥1MΩ
Output signal	DC 4-20mA
Power supply *	DC 12V, 24V
Accuracy	0.5%F.S.
Load capacity	300Ω
Response time	≤250ms
Temperature drift	300*10^-6/℃
Isolation features	Isolation between input and output, output terminals provides power supply
Isolation voltage	AC 2kV, 1 min
Work temperature	-10~+60℃
Storage temperature	-25~+70℃
Protection features	Surge (inrush) immunity: Output/power supply 2kV 1.2/50μs Electrostatic discharge immunity: Contact discharge 6kV, air discharge 8kV Radio frequency electromagnetic field radiation immunity: A Electrical fast transient burst immunity: Signal line port ±2kV, power supply port ±2kV Conducted immunity of radio frequency electromagnetic field: A Inrush current: Input port common mode 5kA, differential mode 3kA, 8/20μs
Mean time between failures	＞50000h
Housing material	Fire-retardant ABS
Wiring	Terminal connection

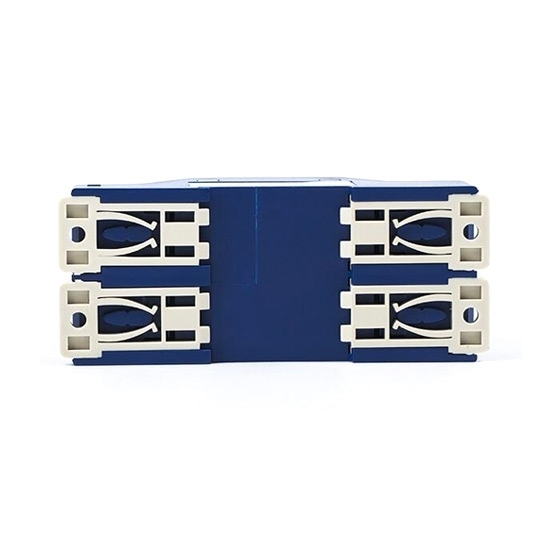

Installation	DIN rail (NS35/7.5, NS35/15, EN50022)

DC voltage sensor 100mV to 70V dimensional drawing (unit: mm):

DC voltage sensor 100mV to 70V wiring diagram:
