AC Current Sensor, AC 200A/400A/600A/800A

0 reviews • Write a review

from

$88.25

Ex Tax: $88.25

Stock: In Stock
Model: RDDLZ-CUS-AC800
Weight: 1.00
SKU: RDDLZ-CUS-AC800

Available Options

Short Description

Output Signal

Measuring Range

Hole Diameter Selection

Power Supply for 0-10V

Power Supply for 0-20mA

Power Supply for 0-5V

Power Supply for 1-5V

Power Supply for 4-20mA

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

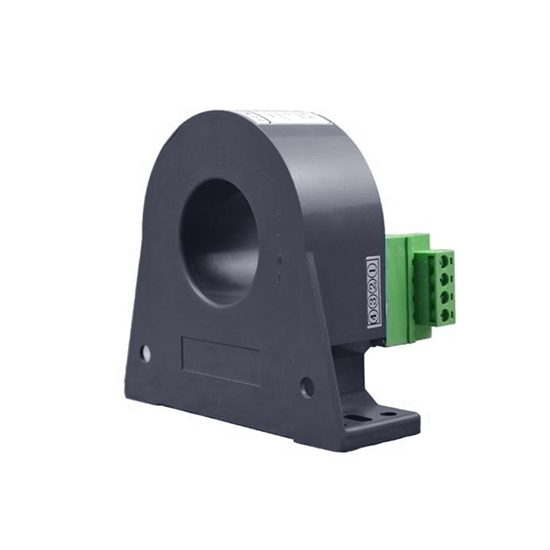

AC current sensor has measuring range of 200A/400A/600A to 800A.

Specification:

Model	RDDLZ-CURTS-DJID
Shipping weight	0.5kg
Measuring range of input current *	AC 0-800A
Output signal *	DC 4-20mA, DC 0-20mA, DC 1-5V, DC 0-5V, DC 0-10V (customizable)
Power supply *	DC 24V, DC 12V, AC 220V, AC 110V (customizable)
Accuracy	0.5%F.S.
Isolation voltage	3kV/50Hz/1min
Offset voltage	≤10mV
Temperature drift	≤100PPM/℃
Frequency bandwidth	20~50Hz
Current consumption	＜5mA
Load capacity	Voltage output: 5mA, current output: 6V
Response time	＜250ms
Overload capacity	30 times nominal input
Work temperature	-10~+70℃
Storage temperature	-25~+85℃
Measuring method	Through-hole
Hole diameter *	35mm, 45mm, 55mm
Installation	Screw fixation

Dimension and wiring diagram:

Tips: Differences between Hall effect current sensor and common current transformer

Hall effect current sensor can measure the current with arbitrary waveform, such as DC, AC and pulse waveform. It can even measure the transient peak. The secondary side current faithfully reflects the waveform of the primary side current. However, a common current transformer can't compare with it because the common current transformer is only available for measuring 50Hz sine wave.
Absolute electrical insulation is achieved between the primary side circuit and the secondary side circuit. The isolation voltage of Hall effect current sensor is generally 2kV to 12kV. For some special demands, it can be 20kV to 50kV.
High precision, good linearity and dynamic performance, short response time. Comparing to a common current transformer, Hall effect current sensor as a non-inductive element is more adaptable to the development requirements of industrial control system.
Small size and light weight, easy installation, non invasive type will not bring any loss to the system.
