90W Single Phase AC Gear Motor, Speed Control

0 reviews • Write a review

from

$398.15

Ex Tax: $398.15

Stock: In Stock
Model: RDDLZ-GEAR-90W
Weight: 1.00
SKU: RDDLZ-GEAR-90W

Available Options

Short Description

Gear Ratio

Model Selection

With Speed Controller

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

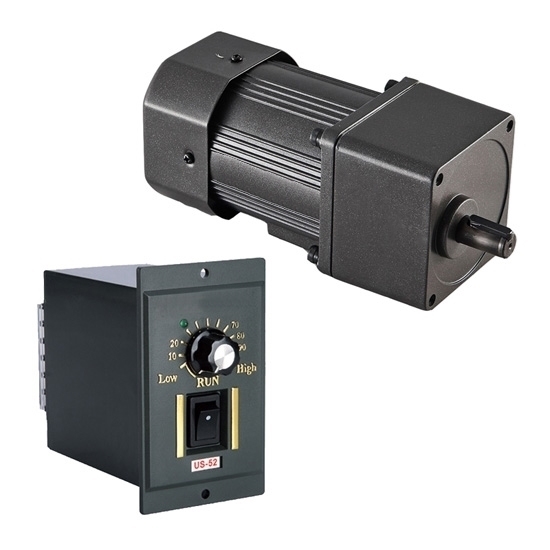

90 watt 90mm AC power single phase gear motor with superior performance and low price, speed control range of 90-1350 rpm/min at 50Hz, 90-1650 rpm/min at 60Hz. This speed control motor can adjust motor speed easily when it connects with a speed controller.

Specifications

Model		RDDLZ-5IK90R-AF		RDDLZ-5IK90R-EF		RDDLZ-5IK90R-CF		RDDLZ-5IK90R-HF
Shaft Type		Pinion shaft or Round shaft (Optional)
Output Power		90W
Phase		Single Phase
Voltage		100V		110V	120V	220V	230V	220V	230V
Frequency		50Hz	60Hz	60Hz		50Hz		60Hz
Current		1.55A	1.85A	1.40A	1.45A	0.72A	0.70A	0.71A	0.75A
Speed Control Range		90-1350r/min	90-1360r/min	90-1650r/min		90-1350r/min		90-1650r/min
Allowance Torque	1200r/min	710mN.m		710mN.m		710mN.m		710mN.m
	90r/min	230mN.m	260mN.m	260mN.m		260mN.m		260mN.m
Starting Torque		405mN.m		410mN.m		410mN.m		410mN.m
Capacitor		25μF		20μF		5μF		5μF
Weight		Motor: 3.3kg, Gearhead: 1.5kg
Gearbox Model		5GU[]K
Gear Ratio		3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200 Enter the gear ratio into the box ([]) within the model name

Allowance Torque Unit: Upside (N.m) / Belowside (kgf.cm)

Model	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
RDDLZ-5IK90R-AF RDDLZ-5IK90R-EF RDDLZ-5IK90R-CF RDDLZ-5IK90R-HF	Gearbox 5GU[]K	50Hz	1.7	20	2.8	3.4	4.3	5.1	6.4	7.7	9.2	11.6	13.6	16.6	20	20	20	20	20	20	20	20	20
		50Hz	17.3	20.4	28.6	34.7	43.9	52.0	65.3	78.6	93.3	118	139	169	200	200	200	200	200	200	200	200	200
		60Hz	1.4	1.7	2.5	2.8	3.5	4.2	5.2	6.2	7.5	9.4	11.3	13.5	18.8	20	20	20	20	20	20	20	20
		60Hz	14.3	17.3	25.5	28.6	35.7	42.9	53.1	63.3	76.5	95.9	115	138	19.2	200	200	200	200	200	200	200	200

Gear Motor Dimension (Unit: mm)

(Note: L1=65.5mm)

Keyway Dimension of Gearhead (Unit: mm)

Shaft Section Dimension of Round Shaft Type (Unit: mm)

(Note: For the round shaft type gear motor, the shape are the same as those of the pinion shaft type except the shaft section)

Speed Controller Dimension (Unit: mm)

Wiring Diagram

Details

Tips: The speed controller must meet the stability conditions

Increasing the damping in the regulating system is a method to improve the dynamic stability. Adjust the damping in the system, for example, the friction in the motion pair makes the speed controller have a certain insensitivity, that is, when the speed of the controlled shaft slightly deviates from the set value, the speed controller does not produce corresponding actions. The insensitivity of the mechanical speed controller is generally about 1% of its set value. The speed controller with too high sensitivity will also produce undesired adjustment actions due to periodic speed fluctuations in the normal operation of the unit.

The speed controller is used to keep the speed of the diesel engine stable. During the load change of a diesel engine, its speed will change accordingly. When the speed is reduced, if the speed controller is not adjusted, the diesel engine will stop. When the speed is increased, if the speed controller is not functioning, the diesel engine will not be able to withstand excessive centrifugal force and be damaged. The role of the speed controller is to keep the speed of the diesel engine stable. In addition, the speed controller can also maintain the low and high speeds of the diesel engine to prevent mechanical damage caused by stalling at low speeds and “speeding” during high speeds.
