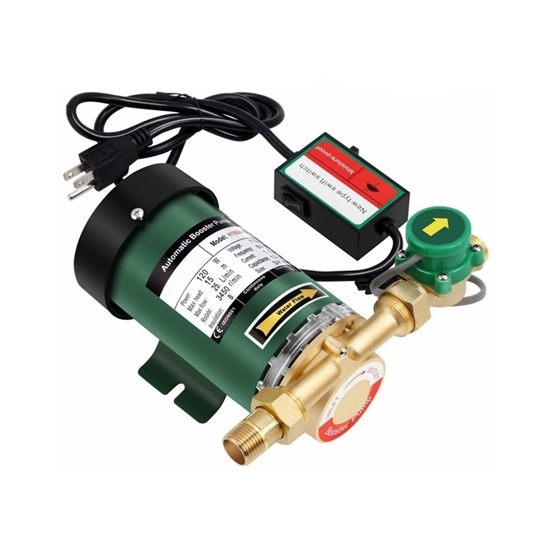

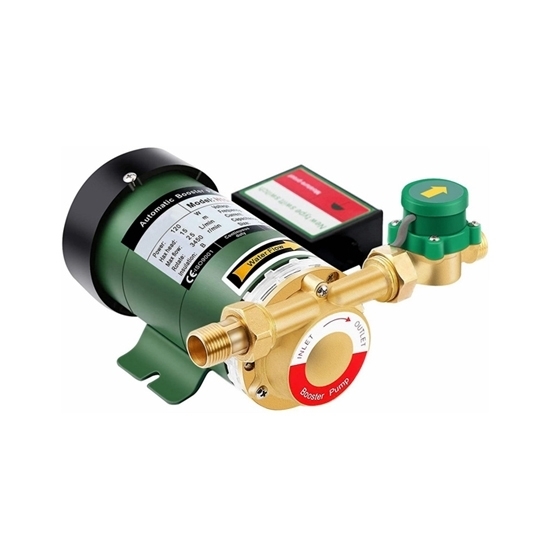

90W automatic water pressure booster pump can be used to increase the water pressure for home, bathroom, washing machine, sprinkler system, irrigation system and reverse osmosis (RO) system.

Specification

• Model: RDDLZ-PBZYB15GR-10
• Voltage (Optional): 110V 60Hz, 220-240V 50Hz, 220-240V 60Hz
• Power: 90W
• Max. Head: 10m (33ft.)
• Max. Flow Rate: 20L/min (5GPM)
• Speed: 2850rpm
• Outlet: 3/4 inch (19mm)
• Cable: 1m (3.28ft.)
• Body Material: Cast Copper
• Dimension: 24cm*17cm*14cm
• Weight: 4kg

Application

Tips: What are the control modes of the booster pump?

The control modes of the automatic booster pump mainly include pressure difference, water flow, water level and frequency conversion. The water level control of these four mainstream control modes is essentially different from the other three. The pressure difference, water flow and frequency conversion are all direct supply types, that is, they are supplied directly to the water unit through the water pump. Differential pressure and water flow are relatively primitive control methods that have typical shortcomings such as unstable water pressure, insensitive control, inaccurate control and high pressure direct start. At present, they have been gradually replaced by high-end variable frequency control. The frequency conversion control automatic booster pump has typical advantages such as precise control, constant pressure, cleanliness, energy saving and low noise, and is generally used in industrial and building water supply and drainage.
