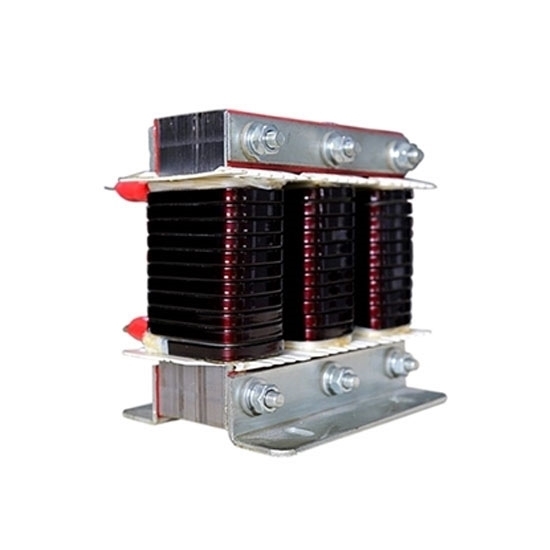

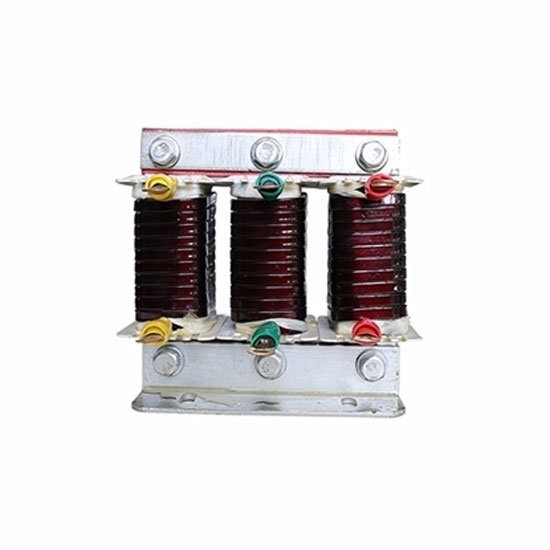

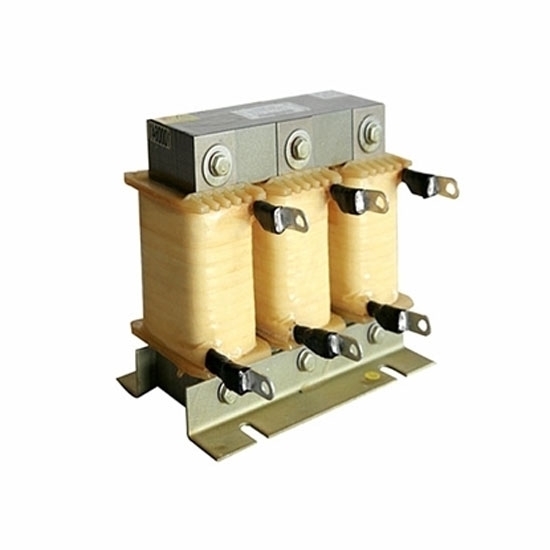

7.5 Hp (5.5 KW) AC Line Reactor, 3 Phase Output

0 reviews • Write a review

from

$299.36

Ex Tax: $299.36

Stock: In Stock
Model: RDDLZ-OLR-5d5
Weight: 1.00
SKU: RDDLZ-OLR-5d5

Available Options

Material

Output AC Voltage (V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Affordable price 7.5 hp 3-phase AC reactor provides 220V, 380V, 400V, 410V, 440V, 460V or 480V, offering material with copper and aluminum, rated current with 15 Amps. Attractive and reasonable price and factory direct sale.

3-Phase Line Reactor Specifications

Basic	Model	RDDLZ-OCR-0015-0M47-0.4SC
	Recommended VFD Model	GK3000-4T0055G (7.5 hp three phase VFD)
	Phase	3 Phase
	Power	7.5 hp (5.5 kW)
	Weight	3 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	15 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.94 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

3-Phase Output Line Reactor Mounting Dimension

Dimension(±5mm)
L	D	W	W1	H	A×B
110	90	95	70	130	6×11

3-Phase Output Line Reactor Circuit Diagram
