5000W 140KV 4-12S Outrunner Brushless Motor For Skateboard

0 reviews • Write a review

from

$293.47

Ex Tax: $293.47

Stock: In Stock
Model: RDDLZ-BLDC-63100
Weight: 1.00
SKU: RDDLZ-BLDC-63100

Available Options

With ESC Controller

Shaft Diameter

With Pulley

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

140KV brushless dc electric motor combines with controller at affordable price. Adding pulley option is available. 5kW inrunner BLDC motor features 8mm/10mm shaft, 4-12S battery voltage, 10 N.m high torque to drive your electric skateboard, longboard, mountainboard, etc.

Specification

Model	RDDLZ-BLDC-63100
Max Power	5000W (6.5 hp)
Rotation Speed KV (RPM/V)	140KV
Max Current	100A
Input Voltage Range	4-12S
Max Torque	10 N.m
Recommend ESC	Single drive 75200 (14V-84V (4-20S Safety))
Motor Wind	9
No-Load Current	1.9A at 10V
Motor Length	100mm
Motor Diameter	63mm
Total Length	138 (including shaft)
Weight	1.4kg
Motor Resistance	0.031Ohm
Motor Inductance	77uh
Shaft Diameter	10mm round shaft, 10mm D-shaft, 8mm round shaft (Optional)
Bullet Connector	4mm
Shipping Package	RDDLZ-63100 motor1, banana head 4.0mm female head3

*Note: The motor is powered by 4-14S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

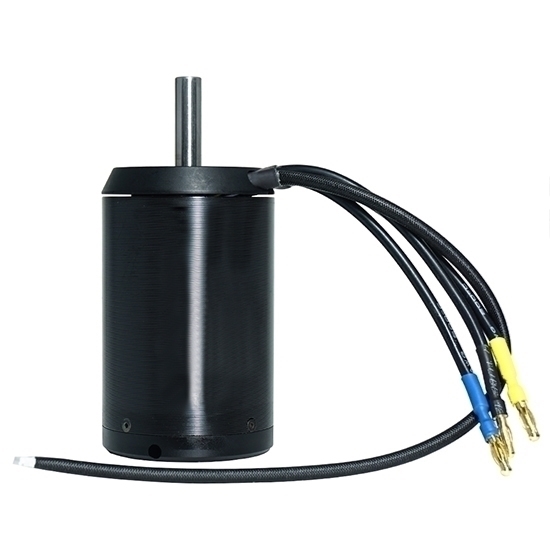

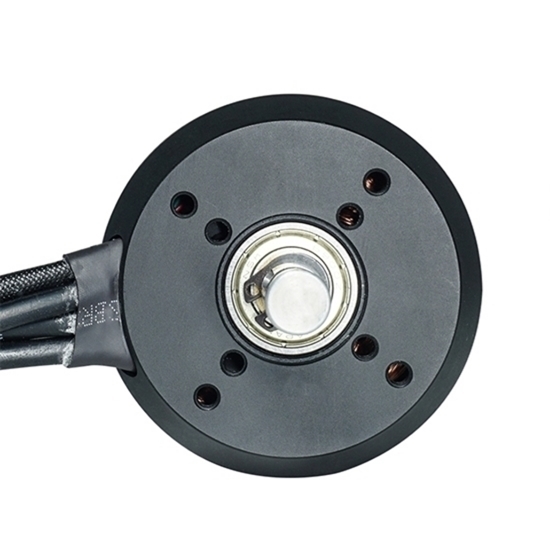

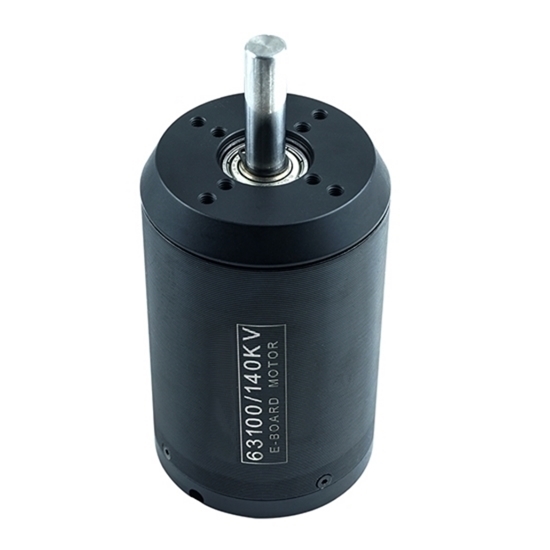

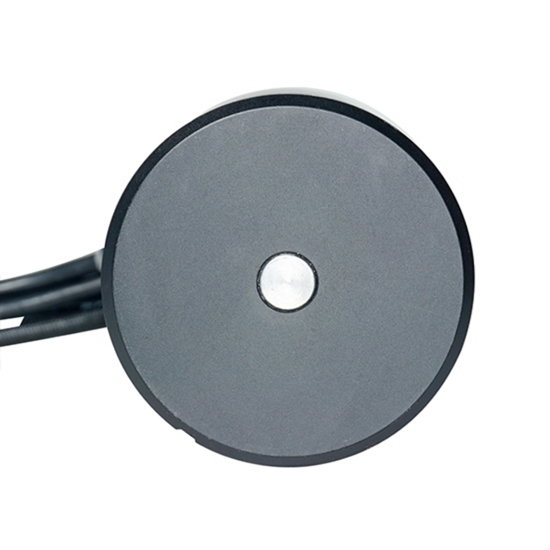

5000W Outrunner Brushless DC Motor Details

Brushless DC Motor Dimensions Drawing (Unit: mm)

ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive 75200	50V/200A, 75V/150A (Duration depends on external heat dissipation conditions)	14V-84V (4-20S Safety)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

Note: If you need to learn more details about ESC controller, please contact us.

Tips: Outrunner BLDC motor used in electric skateboard.

The BLDC motor whose rotor rotates with motor housing and spindle is fixed is the outrunner motor. In contrast, the motor whose rotor rotates with motor spindle and the base is fixed is the inrunner motor.

Generally speaking, outrunner brushless motor has many poles, low speed and high torque. The inner rotor has few poles, high speed and low torque. Usually the rotating part is the part where the magnet is embedded, and the non-rotating part is the coil part.

In the case of the same weight of rotor, the internal rotation is not as large as the external rotation, so the KV of internal rotation is high and the torque is low, while the external rotation is just the opposite.
The inner rotor motor has low torque and high speed, and is mostly used in vehicle models (such as cars, boats and helicopters). The outrunner brushless motor has better heat dissipation and is suitable for electric skateboards and other equipment.
