500 Lb. 10 Ft. Air Chain Hoist

0 reviews • Write a review

from

$3,072.19

Ex Tax: $3,072.19

Stock: In Stock
Model: RDDLZ-ACH-50010
Weight: 1.00
SKU: RDDLZ-ACH-50010

Available Options

Short Description

Metal Chain Container

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

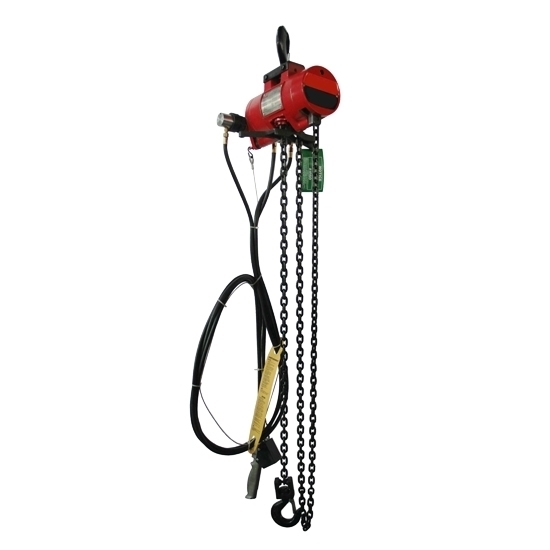

Compact 500 lb. cap. 10 ft. lift air operated chain hoist is used for lifting and moving heavy loads in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.

Specification

Air Chain Hoist	Model	RDDLZ-29HX85
	Capacity	500 lb. (0.25 ton)
	Lift	10 ft.
	Lift Speed	0 to 65 fpm
	Min Between Hooks	15 1/4 in.
	Reeving	1
	Housing L	12 1/8 in.
	Housing W	10 3/16 in.
	Chain Length	11' - 5", 22' - 7"
	Air Pressure Recommended	90 psi
	Air Consumption	48 SCFM at 90 psi
	Suspension	Hook
	Control	Pendant Throttle
	Air Inlet Size	3/8 NPTF
	Air Supply Hose	1/2 I.D. min.
	Air Exhaust	1/2 NPTF
	Net Weight (Basic Hoist)	46 lbs (21 kg)

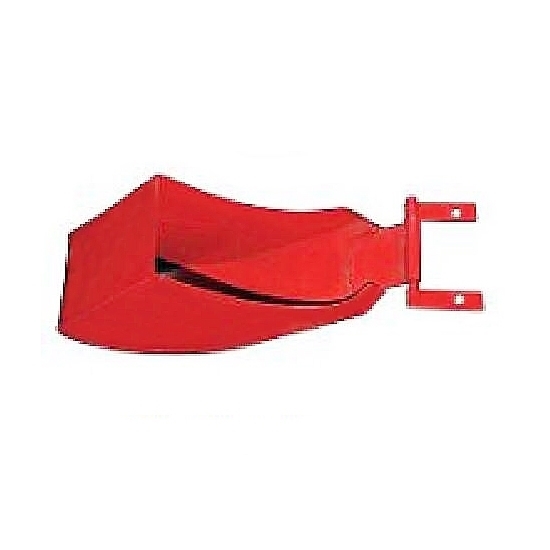

Metal Chain Container	Model	RDDLZ-29HX91
	Chain Lift	Single 20 ft.
	Width	4.5 in.
	Height	12 in.

Dimensions (Unit: mm)

Tips: What is an air chain hoist?

The air chain hoist is composed of five parts, including air motor, deceleration mechanism, air circuit control, braking mechanism and lifting mechanism. Pneumatic chain hoist is a relatively good safe lifting equipment in the industry now. It is powered by the use of compressed air to reduce the use of electricity. It has many advantages that other equipment can't match, because its performance advantages such as accurate positioning, simple operation, safety and reliability, and stepless speed regulation will be used more and more in future industrial production. Because the power source of the pneumatic chain hoist is air, the power is released by air compression. Some people may worry that if there is no air, will the load fall off? However, this is not the case, because the air hoist has an air-cut protection device, so it will not fall without air. In addition, it has an explosion-proof function.
