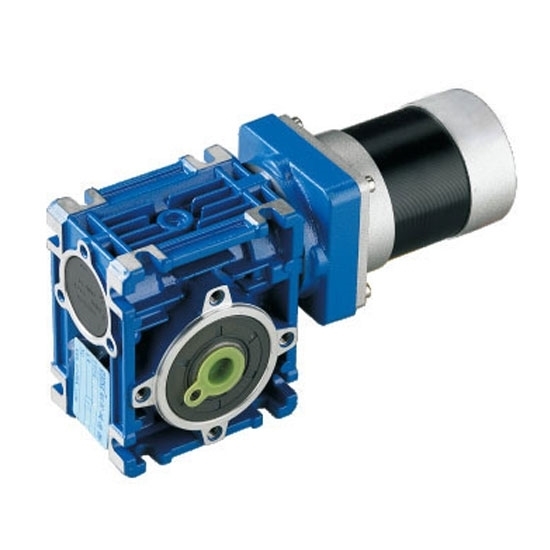

50 W 3 phase BLDC motor is equipped with worm gearbox providing high torque and high efficiency at 12V, 24V or 36V power supply. Its power, voltage, speed, shaft, motor length and lead can be customized.

Specification

Allowable Torque with Gear Head

Note:

• This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
• The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

Dimensions (Unit: mm)

Mounting screws are included with gearhead

Speed-Torque Curve

• Instantaneous maximum torque line
  The maximum torque momentarily impacts the load when the motor is started.
  Beyond this torque, the over-current protection of the driver will cause the motor to stop.
• Short time operation area
  The motor can run at a short time within this torque range at different speeds.
  If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
• Rated operating torque line
  The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
• Continuous operating area
  When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Details

Tips: Advantages of DC worm gear motor

• DC worm gear motor has compact mechanical structure, light volume, small and efficient.
• Good heat exchange performance, fast heat dissipation.
• Simple installation, flexible and light, superior performance, easy maintenance.
• Large driving speed ratio, large torque, high overload capacity.
• Smooth operation, low noise, durable.
• Strong applicability, safety and reliability.
• Long service life, allowing input speed range is very low, deceleration range is large.
• It is with self-locking function suitable for lifting operations.
